Precision Chip Deflector - 3.875x1.375 in
Precision Chip Deflector - 3.875x1.375 in
SKU:STA-0e02fb
Safeguard machine ways with our Precision Chip Deflector made from 16 gauge Cold Rolled Steel. Custom sizes available.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Chip Deflector - 3.875x1.375 in
$29.99
Quantity: 1
Claim Your Seller Account
Precision Chip Deflector - 3.875x1.375 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

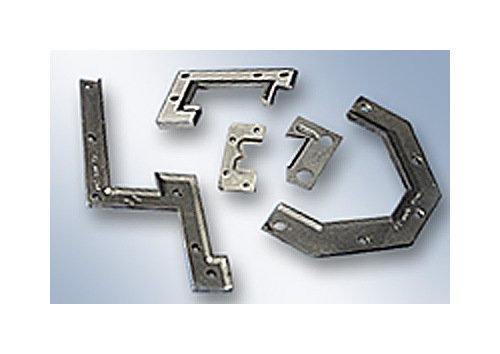

The Precision Chip Deflector is expertly crafted from 16 gauge Cold Rolled Steel to safeguard machine ways from metal chip damage. Preformed to fit specific way wipers, this deflector enhances equipment longevity and performance. Ideal for hot chip applications, it offers exceptional strength and protection. Fabricated to meet custom size specifications, with or without hole patterns, this deflector ensures precise fit and durability. Enhance machine efficiency and durability with the Precision Chip Deflector.
Product Specifications
Mounting Instructions Mounting Instructions

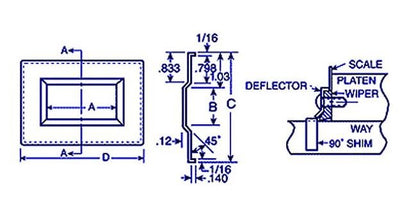

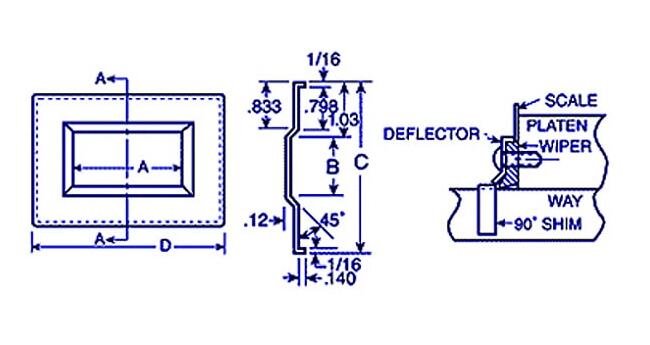

Slide wiper into position.Place deflector over wiper.Insert all screws. Leave loose.Use 1/16 x 90º shim under lip of deflector.Use 6" scale. Apply pressure 90º leg of wiper. Hold deflector against 1/16 shim.Same procedure across top of wiper. Then around remaining sides. Remove shim.
Specifications Dimension A
3.875 in
Specifications Dimension B
1.375 in
Specifications Materials
Cold Rolled Steel (CRS)
Specifications Material Thickness
16 gauge
