Precision CYL-2 Series Cylinder Regulator
Precision CYL-2 Series Cylinder Regulator
SKU:GOR-d7885a
Optimal precision for instrumentation pressure control. Brass construction, Teflon-lined diaphragms, and 0-25 psig range.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Precision CYL-2 Series Cylinder Regulator
$149.99
Quantity: 1
Claim Your Seller Account
Precision CYL-2 Series Cylinder Regulator
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

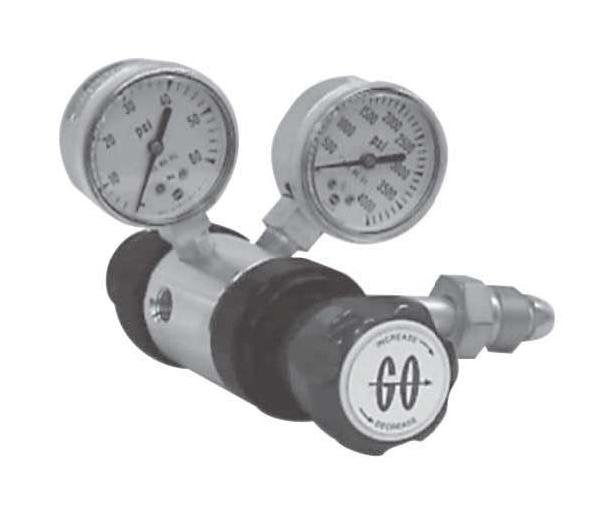

The Precision CYL-2 Series Cylinder Regulator is a two-stage regulator designed for precision pressure control in instrumentation applications. With a brass construction, Teflon-lined stainless steel diaphragms, and optional relief/shut off valves, it offers maximum flexibility. This regulator ensures stable pressure with an inlet pressure of 3600 psig, outlet range of 0-25 psig, and operating temperatures from -40 to 175°F. Ideal for non-corrosive gases, it meets industry demands for precise and sensitive pressure management.
Product Specifications
Specifications Body Material
Brass
Specifications Cap Assembly 1st Stage
Tamper-proof
Specifications Cap Assembly 2nd Stage
Standard
Specifications Cga Fitting
CGA
Specifications Diaphragm Type
Self-relieving
Specifications Flow Cv
0.025
Specifications Gauges
Include gauges
Specifications Max Operating Pressure
3600 psig
Specifications Operating Temperature
-40 to 175 ºF | -40 to 80 ºC
Specifications Outlet Range
0 to 25 psig
Specifications Port Configuration
Standard
Specifications Process Port Type
1/4" FNPT
Specifications Seat Material
PEEK®
Specifications Series
CYL-2

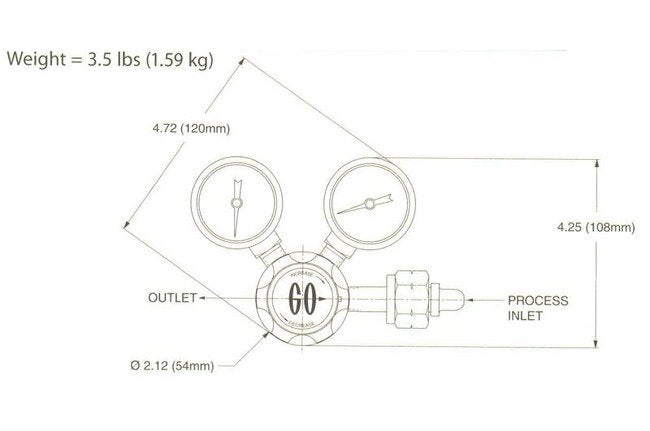

Specifications Weight
3.5 lbs
