Precision Diamond Negative Turning Blank, Thickness 0.166 / 0.174 in
Precision Diamond Negative Turning Blank, Thickness 0.166 / 0.174 in
SKU:TUR-019cd2
Achieve precision in turning projects with our Diamond Negative Turning Blank, 0.166-0.174 in, Grade Available
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Precision Diamond Negative Turning Blank, Thickness 0.166 / 0.174 in
$49.99
Quantity: 1
Claim Your Seller Account
Precision Diamond Negative Turning Blank, Thickness 0.166 / 0.174 in
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your turning projects with our Diamond Negative Turning Blank from the MNR series. With a precise thickness range of 0.166 to 0.174 inches and an inscribed circle of 0.639 to 0.645 inches, this blank offers superior accuracy for machining intricate details. The radius of 1/32 inch and grade availability make it a versatile choice for various turning applications. Meeting industry standards, this turning blank assures top-notch performance and quality results for both consumer and institutional buyers.

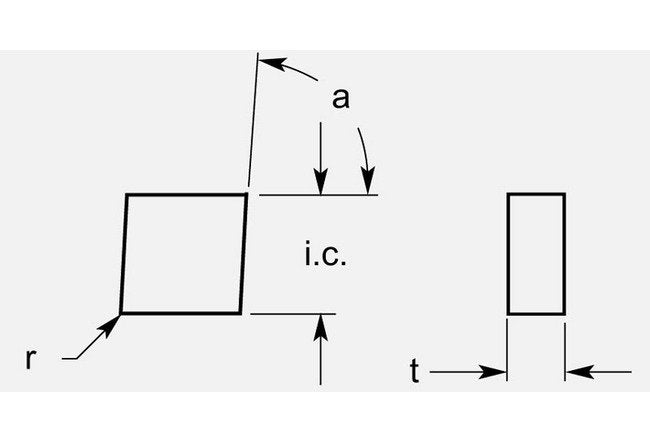

Product Specifications
Dimensional Specification A
86 º
Dimensional Specification Inscribed Circle Ic
0.639/0.645 in
Dimensional Specification Radius R
1/32 in
Dimensional Specification Thickness T
0.166 / 0.174 in
Grade Availability Grade Availability
Available on Request
