Precision Diamond Negative with Hole, 0.198 / 0.206 in
Precision Diamond Negative with Hole, 0.198 / 0.206 in
SKU:TUR-fbfda4
Enhance precision in turning tasks with our Diamond Negative tool - 0.198/0.206 in. Crafted for durability and accuracy. Available on request.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Precision Diamond Negative with Hole, 0.198 / 0.206 in
$49.99
Quantity: 1
Claim Your Seller Account
Precision Diamond Negative with Hole, 0.198 / 0.206 in
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Meet your turning needs with our Precision Diamond Negative with Hole. Crafted with a variable thickness range of 0.198 to 0.206 inches, an Inscribed Circle of 0.497 to 0.503 inches, and a cutting edge Radius of 1/16 inch, this premium grade tool ensures precision and durability. With an optimal Angle of 55 degrees and a precise hole size of 0.200 to 0.206 inches, this tool delivers exceptional performance. Available on request, this tool is designed to meet the highest standards of quality and reliability.

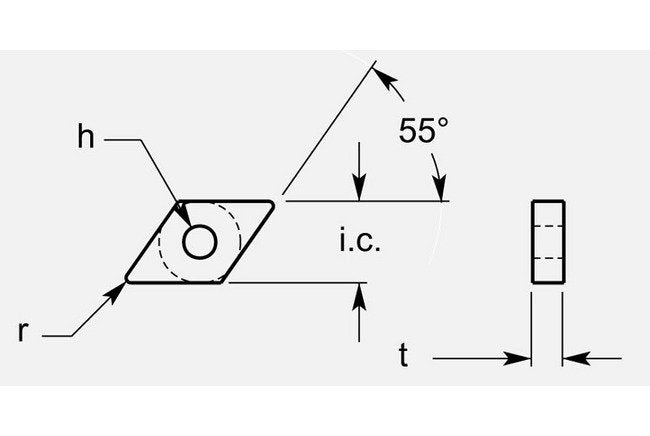

Product Specifications
Dimensional Specification Angle A
55 º
Dimensional Specification Hole
0.200 / 0.206 in
Dimensional Specification Inscribed Circle Ic
0.497/0.503 in
Dimensional Specification Radius R
1/16 in
Dimensional Specification Thickness T
0.198 / 0.206 in
Grade Availability Grade Availability
Available on Request
