Precision Diamond Turning Blanks, i.c. 0.764 / 0.770 in

Name: Precision Diamond Turning Blanks, i.c. 0.764 / 0.770 in
Brand: Ultra-Met
SKU: TUR-87fb70
Price: 49.99 USD
Availability: OutOfStock

SKU:TUR-87fb70

Premium Diamond Positive turning blank with precise dimensions for optimal performance and customization. Ideal for precision engineering applications.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

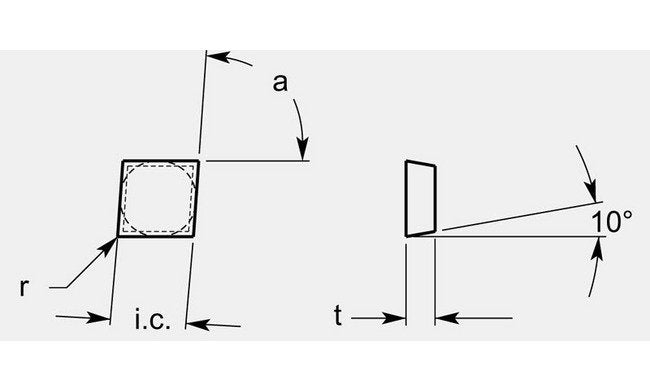

The Diamond Positive - PRPR turning blank features precise dimensional specifications with a Thickness of 0.198 / 0.206 in and an Inscribed Circle of 0.764 / 0.770 in. Its design, including a 0 in Radius and a 87° a angle, ensures unparalleled accuracy and performance. Grade availability is flexible and can be tailored upon request to meet specific project requirements, making it an ideal choice for precision engineering applications.

Product Specifications

Dimensional Specification A

87 Âº

Dimensional Specification Inscribed Circle Ic

0.764/0.770 in

Dimensional Specification Radius R

0 in

Dimensional Specification Thickness T

0.198 / 0.206 in

Grade Availability Grade Availability

Available on Request
