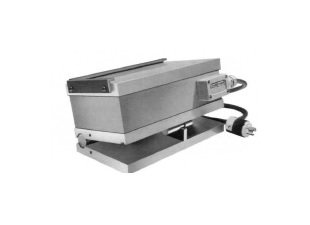

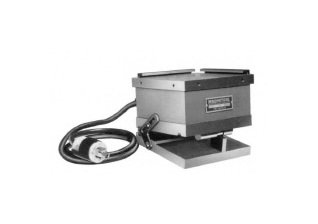

Precision Electromagnetic Compound Angle Sine Plate

Name: Precision Electromagnetic Compound Angle Sine Plate
Brand: Magnetool, Inc.
SKU: ELE-c0d98b
Price: 799.99 USD
Availability: OutOfStock

SKU:ELE-c0d98b

Enhance precision with our Electromagnetic Compound Angle Sine Plate for accurate angular setups in diverse applications.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Precision Electromagnetic Compound Angle Sine Plate from MAGNETOOL enables swift and precise angular setups necessary for a wide range of applications. This magnetic sine plate features high-power Ceramic magnets that maintain their strength consistently, ensuring reliable performance. The top plates, constructed from steel and stainless steel furnace brazed into a single solid plate, provide durability and stability. With a surface area of 6 x 18 square inches, a standard pole spacing of 3/8 inch, and a weight of 214 lbs, this sine plate offers exceptional accuracy and robustness. Additionally, the SAE .8620 Steel Carburized plate and roll material ensure superior hardness and resilience to meet the demands of industrial usage.

Product Specifications

Additional Information 0

Tolerance in squareness, parallelism and between rolls on 363 and 66 is .0002; 612 is .0003; 618 is .0004. Plates and rolls are made of SAE .8620 steel carburized and hardened to 58-60 Rockwell "C" scale.

Specifications Height

7 3/8 in

Specifications Material Hardness

58 to 60 Rockwell C

Specifications Plate And Roll Material

SAE .8620 Steel Carburized

Specifications Sine

5.000 - 15.000

Specifications Standard Pole Spacing

3/8 in

Specifications Surface Area

6 x 18 inÂ²

Specifications Type

Compound Angle

Specifications Weight

214 lb

Precision Electromagnetic Compound Angle Sine Plate
