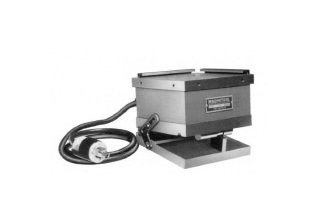

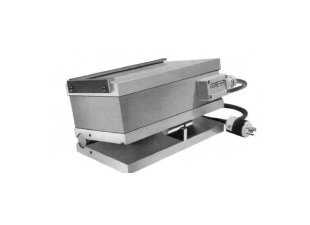

Precision Electromagnetic Compound Angle Sine Plate

Name: Precision Electromagnetic Compound Angle Sine Plate
Brand: Magnetool, Inc.
SKU: ELE-12982d
Price: 799.99 USD
Availability: OutOfStock

SKU:ELE-12982d

Enhance precision setups with MAGNETOOL's Electromagnetic Sine Plate - durable, precise, and compliant.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance precision angular setups efficiently with MAGNETOOL's Precision Electromagnetic Compound Angle Sine Plate. Designed for quick and accurate angle adjustments, this plate features high-power Ceramic magnets for consistent magnetic strength. The top plates, crafted from steel and stainless steel, are furnace-brazed into a single solid plate for durability. With standard pole spacing of 3/8 in, it can securely hold various workpieces, while an option for 1/8 in pole spacing ensures compatibility with thin materials. Made of SAE .8620 Steel Carburized, this plate offers exceptional hardness and reliability, meeting stringent industry standards for precision engineering applications.

Product Specifications

Additional Information 0

Tolerance in squareness, parallelism and between rolls on 363 and 66 is .0002; 612 is .0003; 618 is .0004. Plates and rolls are made of SAE .8620 steel carburized and hardened to 58-60 Rockwell "C" scale.

Specifications Height

6 3/8 in

Specifications Material Hardness

58 to 60 Rockwell C

Specifications Plate And Roll Material

SAE .8620 Steel Carburized

Specifications Sine

5.000 - 10.000

Specifications Standard Pole Spacing

3/8 in

Specifications Surface Area

6 x 12 inÂ²

Specifications Type

Compound Angle

Specifications Weight

104 lb

Precision Electromagnetic Compound Angle Sine Plate
