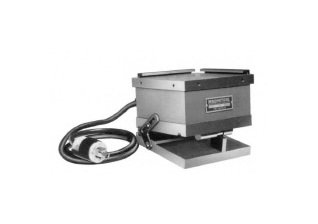

Precision Electromagnetic Single Angle Sine Plate
Precision Electromagnetic Single Angle Sine Plate
SKU:ELE-2a3133
Achieve precise angular setups swiftly and reliably with the Precision Electromagnetic Single Angle Sine Plate. Durable, stable, and highly accurate for various applications.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Precision Electromagnetic Single Angle Sine Plate
$499.99
Quantity: 1
Claim Your Seller Account
Precision Electromagnetic Single Angle Sine Plate
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Electromagnetic Single Angle Sine Plate by MAGNETOOL is a superior choice for creating precise angular setups swiftly. Featuring high-power Ceramic magnets that never lose strength, this plate ensures reliability and accuracy in your measurements. The steel and stainless steel top plates are furnace-brazed into a single solid plate, offering durability and stability. With standard pole spacing of 3/8 in and the capability to hold thin to thick pieces, this Sine Plate guarantees exceptional performance in various applications. Made of SAE .8620 Steel Carburized with a material hardness of 58 to 60 Rockwell C, it ensures longevity and precision in every use.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
Tolerance in squareness, parallelism and between rolls on 363 and 66 is .0002; 612 is .0003; 618 is .0004. Plates and rolls are made of SAE .8620 steel carburized and hardened to 58-60 Rockwell "C" scale..
Specifications Height
5 in
Specifications Material Hardness
58 to 60 Rockwell C
Specifications Plate And Roll Material
SAE .8620 Steel Carburized
Specifications Sine
5.000
Specifications Standard Pole Spacing
3/8 in
Specifications Surface Area
6 x 12 in²
Specifications Type
Single Angle
Specifications Weight
88 lb
