Precision End Truck Kit with Motor Driven Wheels
Precision End Truck Kit with Motor Driven Wheels
SKU:REL-0dbc3e
Upgrade your crane with precision motor-driven wheels and durable steel gears for smooth operation and OSHA compliance.
Regular price
$1,599.99
Regular price
Sale price
$1,599.99
Unit price
per
Initiate Order
Precision End Truck Kit with Motor Driven Wheels
$1,599.99
Quantity: 1
Claim Your Seller Account
Precision End Truck Kit with Motor Driven Wheels
$1,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

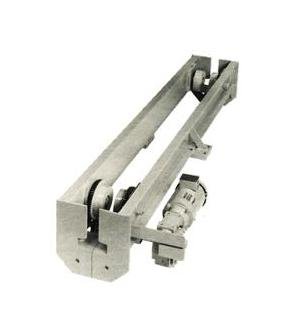

Enhance your overhead crane performance with our Precision End Truck Kit featuring motor-driven Tru-Tred Alloy Steel Wheels and heavy-duty Timken tapered roller bearings. Designed for durability and smooth operation, our kit includes single or dual motor options with precision oil bath lubricated gearing and mechanical braking that meet OSHA standards. The split truck design allows for easy crane erection on various runway systems, while the alloy carbon steel machined gears ensure long-lasting and quiet operation. Upgrade your crane with reliability and precision with our end truck kit.
Product Specifications
Kit Contents 0
Tru-Tred Alloy Steel Wheels Motor Driven Models Heavy Duty sealed tapered tapered roller bearings Precision Machine Cut Steel Gears Large Diameter Drive Pinions
Specifications Model
Model UCS Competitor Series
Specifications Optional Equipment
Controls - Single or two speed | Bumpers - Rubber or spring type | Shorter wheel base | Spark resistant models
Standard Features 0
Drives : Single and dual motor design with precision oil bath lubricated gearing and mechanical braking for smooth deceleration and final stop. Standard "Rightway" 230/460V-3P-60Hz drive motors are connected to precision oil bath lubricated gear reducers. The Mechanical Braking meets all OSHA requirements for crane deceleration and stopping. Gearing : Alloy carbon steel precision machine cut, sized and proportioned with large pitch diameter pinion gears having generous face width for long life and quiet operation. Pinion gears are supported between self-aligning lubricated and sealed ball bearing pillow blocks - no overhung gearing.End Truck Frames : Fabricated from steel channel shapes with heavy axle reinforcement bosses, precision drilled bridge girder connection pads and protective front plates with rail safety lugs all jig assembled to insure accurate wheel alignment for true running operation. Split truck design allows quick easy crane erection on either open end or closed end runway system.Tru-Tred Wheels : Precision machined from alloy steel to meet the most demanding service requirements.Wheel Bearings : Heavy duty long life rated lubricated and sealed Timken tapered roller bearings designed to take the unavoidable shocks of crane duty.Side Rollers : Heavy-duty cam follower bearings provide smooth non-skewing crane operation.
