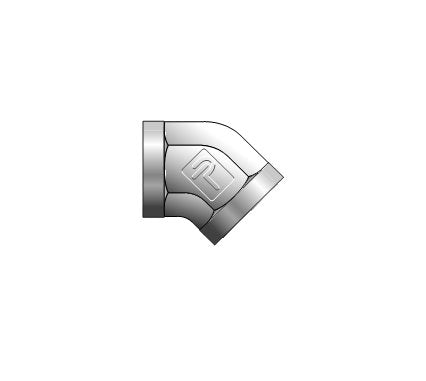

Precision Female Elbow 45° FVE for Fractional Tube Connection
Precision Female Elbow 45° FVE for Fractional Tube Connection
SKU:FIT-d5a0f3
Top-quality Precision Female Elbow 45° FVE ensuring leak-free connections in instrumentation and industrial applications. Crafted from durable steel and brass with high working pressure.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Female Elbow 45° FVE for Fractional Tube Connection
$29.99
Quantity: 1
Claim Your Seller Account
Precision Female Elbow 45° FVE for Fractional Tube Connection
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Female Elbow 45° FVE is a top-quality instrumentation pipe fitting designed for leak-free connections in process, power, instrumentation, and industrial applications. Manufactured at the Parker Instrumentation Products Division, these fittings meet stringent quality standards. Crafted from steel and brass, they ensure durability and performance. Engineered for precision, these fittings offer a working pressure of up to 3700 psig, ideal for demanding environments. Packaged in sealed, clear plastic boxes, they maintain cleanliness and adhere to industry standards for instrumentation applications.
Product Specifications
Dimensions Connection Type
FNPT to FNPT

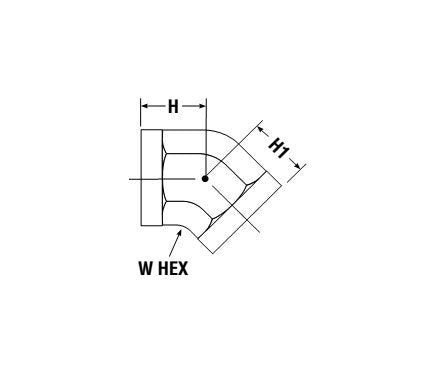

Dimensions H
1.00 in
Dimensions H1
1.00 in
Dimensions Npt Thread Female
3/4
Dimensions Working Pressure Brass
2000 psig
Dimensions Working Pressure Stainless Steel
3500 psig
Dimensions Working Pressure Steel
3700 psig
Dimensions W Hex
1 5/16 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
