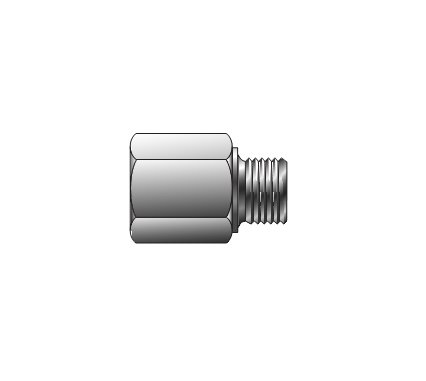

Precision Female NPT to Male BSPP Adapter
Precision Female NPT to Male BSPP Adapter
SKU:FIT-13bfaf
Facilitate seamless connections between NPT and ISO Thread configurations with the durable Precision Female NPT to Male BSPP Adapter by Parker.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Female NPT to Male BSPP Adapter
$29.99
Quantity: 1
Claim Your Seller Account
Precision Female NPT to Male BSPP Adapter
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Female NPT to Male BSPP Adapter by Parker exceeds industry standards, facilitating seamless connections between NPT and ISO Thread configurations. Crafted from premium stainless steel or brass, this adapter ensures durability and longevity. With a working pressure of up to 5000 psi, it guarantees reliable performance in demanding environments. Designed for precision and versatility, this adapter is ideal for industrial applications requiring secure, leak-free connections.
Product Specifications

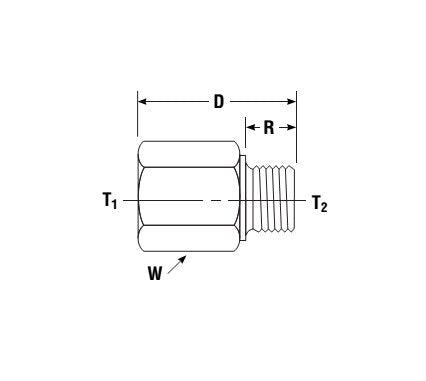

Dimensions Bspp Thread T2
3/8-19
Dimensions Connection Type
FNPT x BSPP
Dimensions D
1.41 in
Dimensions Npt Thread T1
3/8-18
Dimensions R
.44 in
Dimensions Working Pressure Brass
2600 psi | 180 bar
Dimensions Working Pressure Stainless Steel
5000 psi | 340 bar
Dimensions W Hex
7/8 in
Specifications Design
Parker ISO Conversion Fittings are designed to the most commonly used ISO thread forms. These thread forms are used where pressure tight joints are either made on threads utilizing a thread sealant or where pressure tight joints utilize a peripheral seal on the face of the mating component.
Specifications Material
Parker ISO Conversion Fittings are standard in stainless steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
