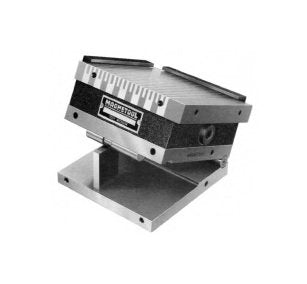

Precision Fine Pole Magnetic Sine Plate

Name: Precision Fine Pole Magnetic Sine Plate
Brand: Magnetool, Inc.
SKU: FIN-f8d5a9
Price: 549.99 USD
Availability: OutOfStock

SKU:FIN-f8d5a9

Rapidly set precise angles with the durable Precision Fine Pole Magnetic Sine Plate. Securely holds various workpiece thicknesses with high-power Ceramic magnets.

$549.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Precision Fine Pole Magnetic Sine Plate is a MAGNETOOL designed for rapid and accurate angular setups. Featuring a top plate crafted from steel and stainless steel furnace-brazed into a single solid unit, this tool offers superior durability. Equipped with high-power Ceramic magnets that maintain strength over time, it ensures secure holding for both thin and thick workpieces. With standard pole spacing of 3/8 inches and exceptional material hardness of 58 to 60 Rockwell C, this plate provides precise setups with a tolerance of .0002 inches. Compliance with SAE standards ensures reliability and performance excellence for a wide range of applications.

Product Specifications

Additional Information 0

Tolerance in squareness, parallelism and between rolls on 363 and 66 is .0002, 612 is .0003, 618 is .0004. Plates and rolls are made of SAE .8620 steel carburized and hardened to 58 to 60 Rockwell "C" scale.

Specifications Height

4 in

Specifications Material Hardness

58 to 60 Rockwell C

Specifications Plate And Roll Material

SAE .8620 Steel Carburized

Specifications Sine

5.000

Specifications Standards

SAE

Specifications Standard Pole Spacing

3/8 in

Specifications Surface Area

36 inÂ²

Specifications Tolerance

.0002 in

Specifications Type

Single Angle

Specifications Weight

29 lb
