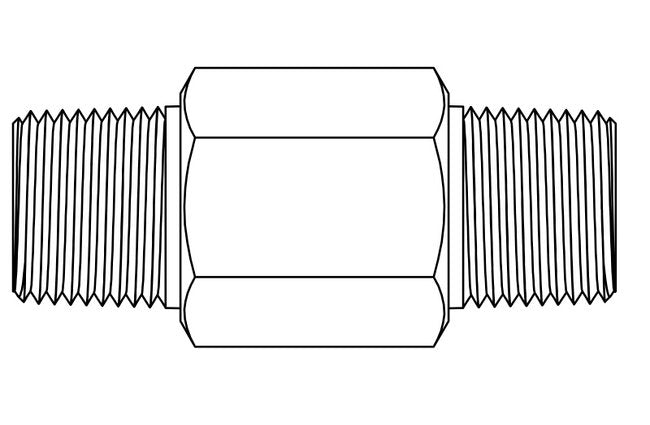

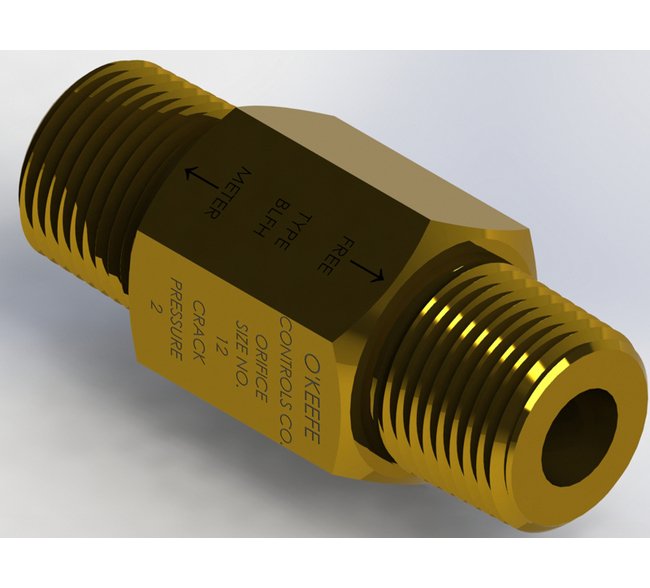

Precision Fixed Flow Ball Controls - NPT Nipple
Precision Fixed Flow Ball Controls - NPT Nipple
SKU:FLO-3459c8
Enhance fluid control with precision and durability with our Fixed Flow Ball Controls - perfect for liquids and gases.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Precision Fixed Flow Ball Controls - NPT Nipple
$49.99
Quantity: 1
Claim Your Seller Account
Precision Fixed Flow Ball Controls - NPT Nipple
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

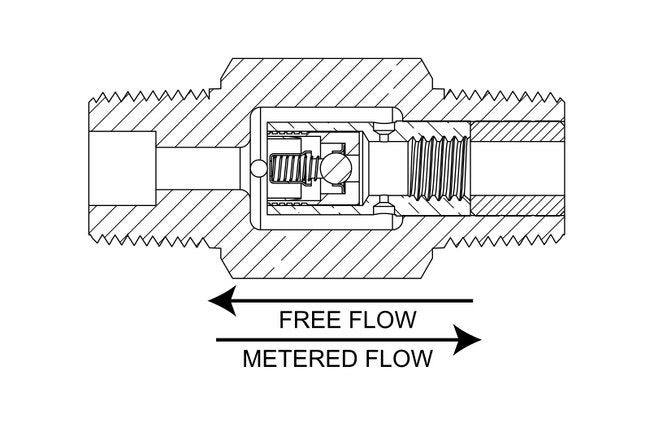

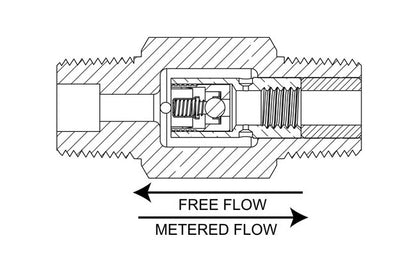

Enhance fluid control with our Precision Fixed Flow Ball Controls featuring a ball check valve and precise orifice for controlled flow direction, ideal for liquids and gases. Crafted from durable brass with stainless steel components, these controls offer a tamperproof orifice, high pressure capacity, and a choice of cracking pressure. With all-metal construction, they ensure long-lasting, reliable performance in various applications.
Product Specifications
Dimensions Orifice Diameter
0.043 in
Dimensions Total Length
1.4 in
Dimensions Width Across Flats Hex
9/16 in
Features Features
All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity
Flow Data Air Flow At 100 Psig
346 to 662 ft³/h
Flow Data Water Flow At 100 Psig
0.8 to 1.6 gpm
Specifications Additional Wetted Material
Loctite 609 / 680
Specifications Assembly Forward Cv
0.122
Specifications Ball Material
304 SS
Specifications Check Valve Cv
0.081
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/8" NPT Male
Specifications Cracking Pressure
2 psig
Specifications Cv Ratio Forward Cv Return Cv
2.98
Specifications Material
Brass
Specifications Maximum Operating Pressure Gauge
2000 psig
Specifications Nominal Orifice Size
43
Specifications Orifice Cv Return
0.041
Specifications Screened
None
Specifications Seal Material
Loctite 609, 680
