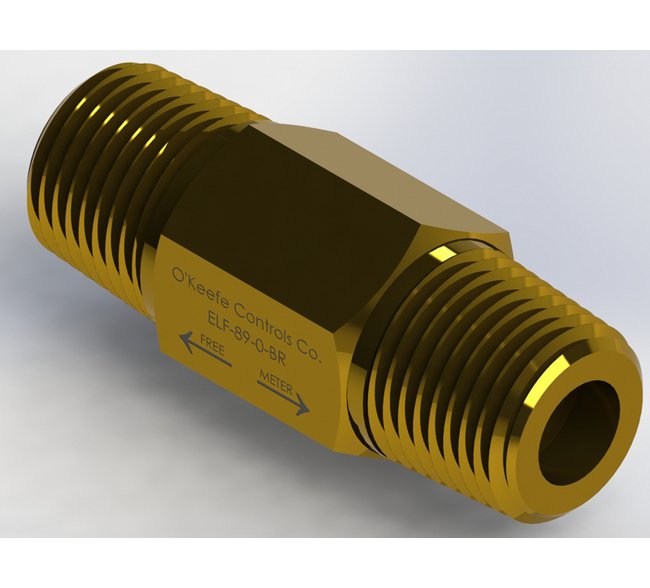

Precision Fixed Flow Ball NPT Nipple

Name: Precision Fixed Flow Ball NPT Nipple
Brand: O'Keefe Controls Co.
SKU: FLO-c27696
Price: 39.99 USD
Availability: OutOfStock

SKU:FLO-c27696

Optimize fluid control with our Precision Fixed Flow Ball NPT Nipple. Durable construction, precise flow regulation, and high pressure capacity for reliable performance in liquids and gases.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

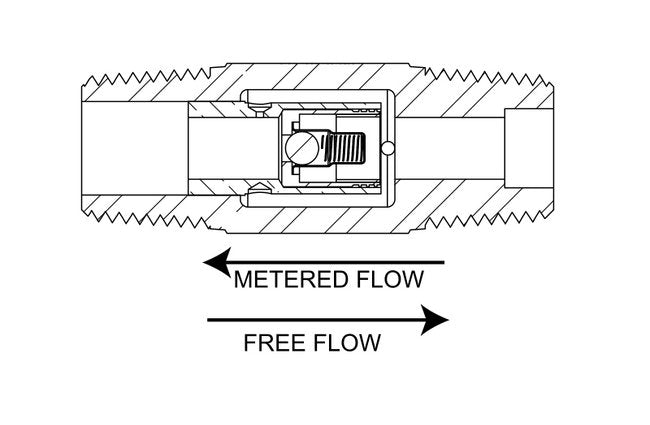

Enhance fluid control with our Precision Fixed Flow Ball NPT Nipple, featuring a ball check valve and precision orifice for metered flow. Crafted from durable brass with a 304 SS ball, this NPT nipple ensures reliable performance in liquids and gases. With a tamperproof orifice and high pressure capacity, it offers versatility and long-lasting operation. Suitable for various applications, this product guarantees precise flow regulation and exceptional durability.

Product Specifications

Dimensions Orifice Diameter

0.013 in

Dimensions Total Length

1.91 in

Dimensions Width Across Flats Hex

11/16 in

Features Features

All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity

Flow Data Air Flow At 100 Psig

809 to 1650 ftÂ³/h

Flow Data Water Flow At 100 Psig

1.9 to 3.9 gpm

Specifications Assembly Forward Cv

0.195

Specifications Ball Material

304 SS

Specifications Check Valve Cv

0.191

Specifications Connection A

1/4" NPT Male

Specifications Connection B

1/4" NPT Female

Specifications Cracking Pressure

2 psig

Specifications Cv Ratio Forward Cv Return Cv

51.26

Specifications Material

Brass

Specifications Maximum Operating Pressure Gauge

200 psig

Specifications Nominal Orifice Size

Specifications Orifice Cv Return

0.0038

Specifications Screened

None

Precision Fixed Flow Ball NPT Nipple
