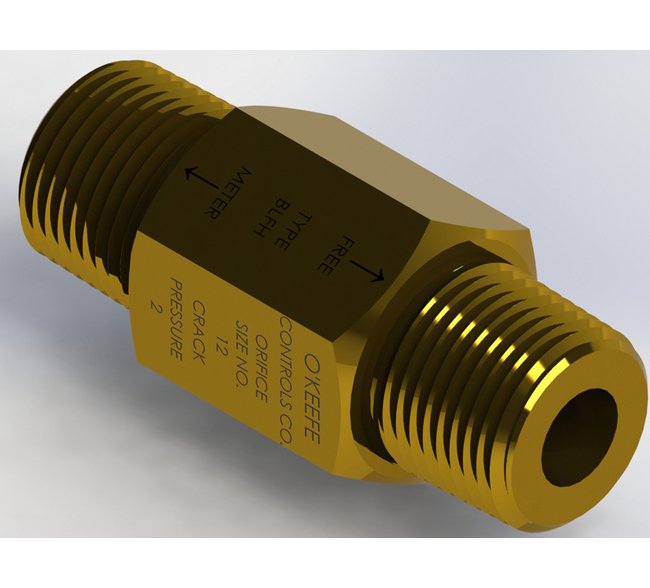

Precision Fixed Flow Ball Type NPT Nipple
Precision Fixed Flow Ball Type NPT Nipple
SKU:FLO-12ad01
High-quality Precision Fixed Flow Ball Type NPT Nipple for accurate metered flow in liquids and gases. Durable brass construction with 304 SS ball material.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Precision Fixed Flow Ball Type NPT Nipple
$39.99
Quantity: 1
Claim Your Seller Account
Precision Fixed Flow Ball Type NPT Nipple
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Fixed Flow Ball Type NPT Nipple is a high-quality flow control solution featuring a parallel arrangement of a ball check valve and a precision orifice. Designed for precise metered flow in one direction and free flow in the other, this brass construction with 304 SS ball material ensures durability and reliable performance. With a tamperproof orifice and a choice of cracking pressure, this product offers long life operation and high-pressure capacity, making it suitable for liquids and gases in various applications. With dimensions of 0.013 in orifice diameter and a maximum operating pressure of 2000 psig, this fixed flow control is a dependable choice for industrial use.
Product Specifications
Dimensions Orifice Diameter
0.013 in
Dimensions Total Length
1.4 in
Dimensions Width Across Flats Hex
9/16 in
Features Features
All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity
Flow Data Air Flow At 100 Psig
346 to 662 ft³/h
Flow Data Water Flow At 100 Psig
0.8 to 1.6 gpm
Specifications Additional Wetted Material
Loctite 609 / 680
Specifications Assembly Forward Cv
0.085
Specifications Ball Material
304 SS
Specifications Check Valve Cv
0.081
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/8" NPT Male
Specifications Cracking Pressure
10 psig
Specifications Cv Ratio Forward Cv Return Cv
22.32
Specifications Material
Brass
Specifications Maximum Operating Pressure Gauge
2000 psig
Specifications Nominal Orifice Size
13
Specifications Orifice Cv Return
0.0038
Specifications Screened
None
Specifications Seal Material
Loctite 609, 680
