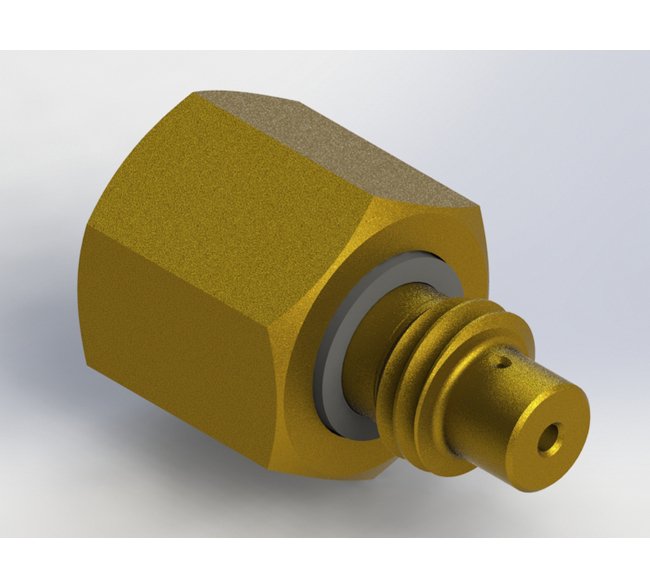

Precision Fixed Flow Ball Type UNF/UNC Adapter
Precision Fixed Flow Ball Type UNF/UNC Adapter
SKU:FLO-a364be
Cost-effective Precision Fixed Flow Ball Type UNF/UNC Adapter for reliable flow control in various applications. Brass construction, Viton seals, Buna-N ball material.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Precision Fixed Flow Ball Type UNF/UNC Adapter
$24.99
Quantity: 1
Claim Your Seller Account
Precision Fixed Flow Ball Type UNF/UNC Adapter
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Fixed Flow Ball Type UNF/UNC Adapter is a cost-effective solution for controlling flow direction and rate. Crafted with a stainless steel or buna-N ball and a precision orifice, this adapter allows free flow in one direction and metered flow in the opposite direction. With 10-32 threads and options for set screw or male/female fitting, it offers precise control with an orifice diameter of 0.021 inches and a cracking pressure of 125 psig. Made of high-quality brass with Viton seals and Buna-N ball material, it ensures reliable performance in temperatures up to 180 °F and pressures up to 125 psig. Ideal for applications requiring low flow coefficient and high flow control capabilities.
Product Specifications
Dimensions Orifice Diameter
0.021 in
Dimensions Total Length
0.545 in
Dimensions Width Across Flats Hex
5/16 in
Flow Data High Flow Orifice Cv2
0.01
Flow Data Low Flow Coefficient
0.01
Specifications Ball Material
Buna-N
Specifications Connection A
10-32 UNF Male
Specifications Connection B
10-32 UNF Female
Specifications Cracking Pressure
125 psig
Specifications Material
Brass
Specifications Maximum Operating Pressure Gauge
125 psig
Specifications Maximum Temperature
180 ºF
Specifications Nominal Orifice Size
21
Specifications Screened
None
Specifications Seal Material
Viton
