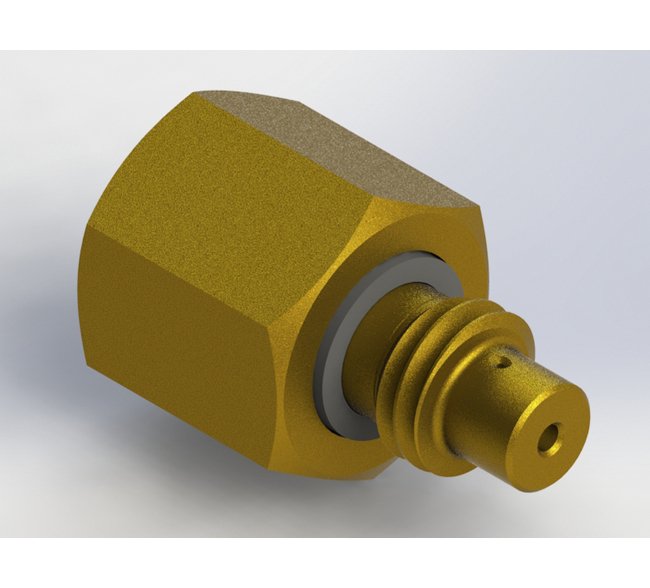

Precision Fixed Flow Control Adapter - UNF/UNC 10-32, Ball Type
Precision Fixed Flow Control Adapter - UNF/UNC 10-32, Ball Type
SKU:FLO-65e7f6
Achieve precise flow control with our UNF/UNC 10-32 Precision Fixed Flow Control Adapter. Ideal for metered flow in one direction and free flow in the other.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Precision Fixed Flow Control Adapter - UNF/UNC 10-32, Ball Type
$24.99
Quantity: 1
Claim Your Seller Account
Precision Fixed Flow Control Adapter - UNF/UNC 10-32, Ball Type
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Fixed Flow Control Adapter is a cost-effective solution designed for precise flow regulation in both directions. Featuring a stainless steel ball and a precision orifice, it allows free flow in one direction and metered flow through the orifice in the opposite direction. With 10-32 UNF male and female connections, this adapter offers reliable performance with a Brass construction, Viton seals, and Buna-N ball material. Operating at a maximum pressure of 125 psig and a temperature of 180°F, this adapter ensures accurate flow control in various industrial applications.
Product Specifications
Dimensions Orifice Diameter
0.014 in
Dimensions Total Length
0.545 in
Dimensions Width Across Flats Hex
5/16 in
Flow Data High Flow Orifice Cv2
0.0043
Flow Data Low Flow Coefficient
0.0043
Specifications Ball Material
Buna-N
Specifications Connection A
10-32 UNF Male
Specifications Connection B
10-32 UNF Female
Specifications Cracking Pressure
125 psig
Specifications Material
Brass
Specifications Maximum Operating Pressure Gauge
125 psig
Specifications Maximum Temperature
180 ºF
Specifications Nominal Orifice Size
14
Specifications Screened
None
Specifications Seal Material
Viton
