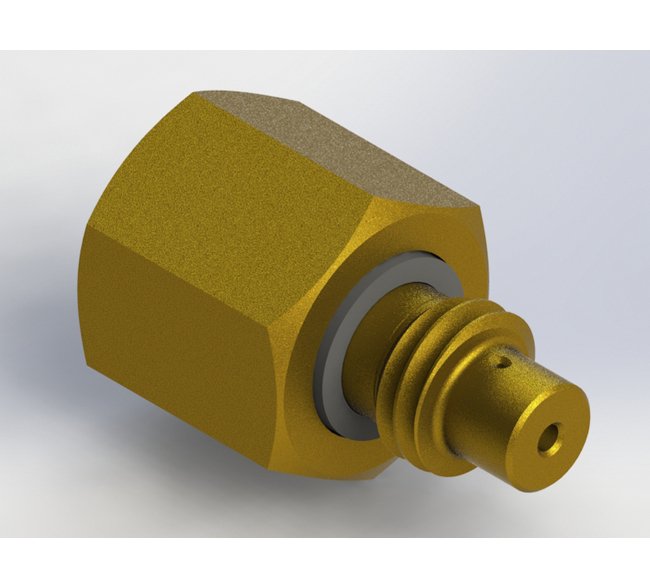

Precision Fixed Flow Control Adapter with UNF/UNC Threads
Precision Fixed Flow Control Adapter with UNF/UNC Threads
SKU:FLO-bf0fa8
Achieve precise flow control with the Precision Fixed Flow Control Adapter. Stainless steel ball and brass construction. Ideal for various applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Fixed Flow Control Adapter with UNF/UNC Threads
$29.99
Quantity: 1
Claim Your Seller Account
Precision Fixed Flow Control Adapter with UNF/UNC Threads
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Fixed Flow Control Adapter with UNF/UNC Threads offers precise flow regulation with its stainless steel ball check valve and buna-N ball. With a 0.016-inch orifice diameter and 125 psig cracking pressure, this brass adapter ensures controlled flow in both directions. Suitable for temperatures up to 180°F, it features Viton seals and 10-32 UNF connections, making it adaptable for various applications. Whether used as a set screw or male/female fitting, this adapter guarantees reliable performance and durability.
Product Specifications
Dimensions Orifice Diameter
0.016 in
Dimensions Total Length
0.545 in
Dimensions Width Across Flats Hex
5/16 in
Flow Data High Flow Orifice Cv2
0.0055
Flow Data Low Flow Coefficient
0.0055
Specifications Ball Material
Buna-N
Specifications Connection A
10-32 UNF Male
Specifications Connection B
10-32 UNF Female
Specifications Cracking Pressure
125 psig
Specifications Material
Brass
Specifications Maximum Operating Pressure Gauge
125 psig
Specifications Maximum Temperature
180 ºF
Specifications Nominal Orifice Size
16
Specifications Screened
None
Specifications Seal Material
Viton
