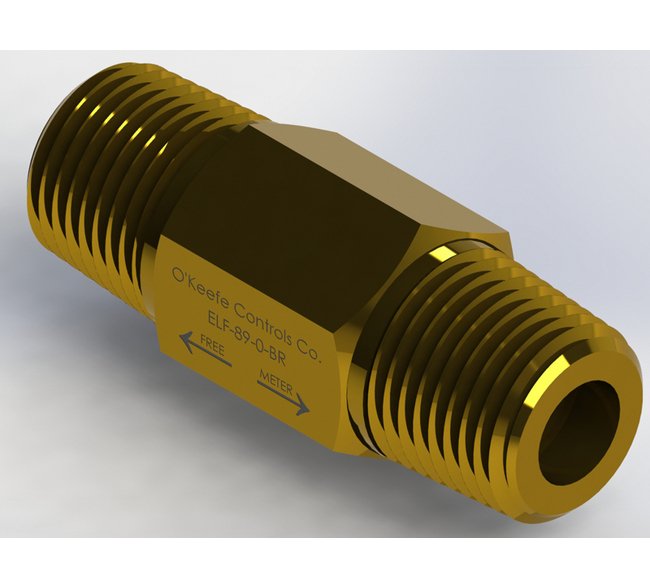

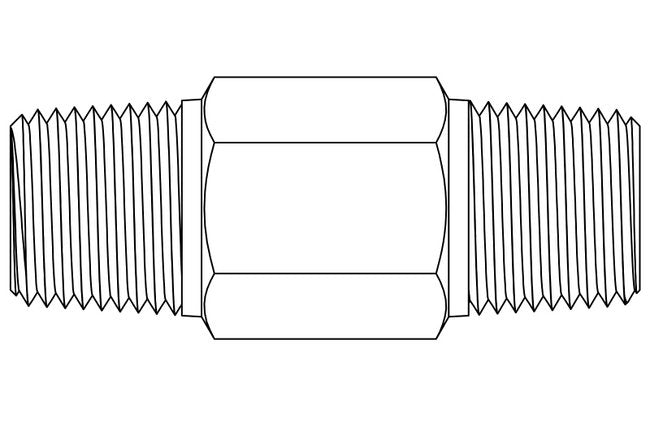

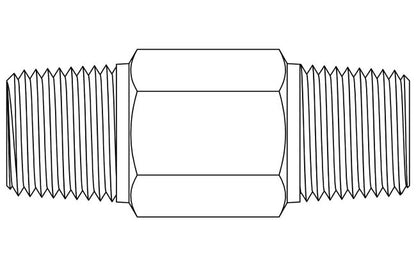

Precision Fixed Flow Control Ball NPT Nipple

Name: Precision Fixed Flow Control Ball NPT Nipple
Brand: O'Keefe Controls Co.
SKU: FLO-e92ae0
Price: 45.99 USD
Availability: OutOfStock

SKU:FLO-e92ae0

Achieve precise flow control with our durable brass and 304 SS NPT Nipple. Ideal for liquids and gases.

$45.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

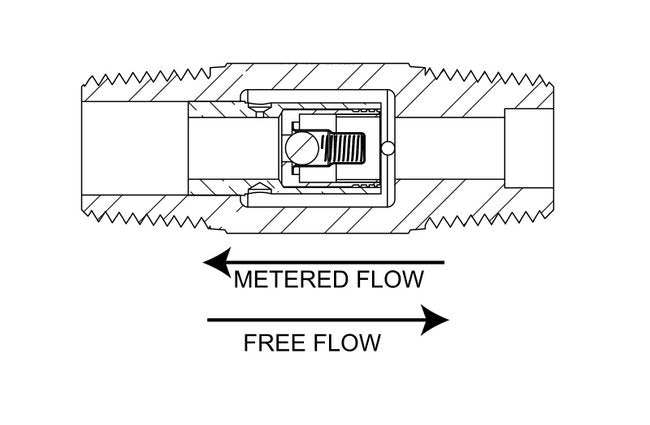

Enhance flow control precision with our Precision Fixed Flow Control Ball NPT Nipple. This device features all-metal construction, a choice of cracking pressure, tamperproof orifice, and high-pressure capacity, ensuring long-lasting, reliable performance in regulating both liquid and gas flows. With a proven track record of meeting stringent industry standards, this brass and 304 SS flow control is ideal for applications where accuracy and durability are paramount.

Product Specifications

Dimensions Orifice Diameter

0.021 in

Dimensions Total Length

1.91 in

Dimensions Width Across Flats Hex

11/16 in

Features Features

All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity

Flow Data Air Flow At 100 Psig

809 to 1650 ftÂ³/h

Flow Data Water Flow At 100 Psig

1.9 to 3.9 gpm

Specifications Assembly Forward Cv

0.201

Specifications Ball Material

304 SS

Specifications Check Valve Cv

0.191

Specifications Connection A

1/4" NPT Male

Specifications Connection B

1/4" NPT Female

Specifications Cracking Pressure

0 psig

Specifications Cv Ratio Forward Cv Return Cv

20.90

Specifications Material

Brass

Specifications Maximum Operating Pressure Gauge

200 psig

Specifications Nominal Orifice Size

Specifications Orifice Cv Return

0.0096

Specifications Screened

None

Precision Fixed Flow Control Ball NPT Nipple
