Precision Fixed Flow Control Ball NPT Nipple

Name: Precision Fixed Flow Control Ball NPT Nipple
Brand: O'Keefe Controls Co.
SKU: FLO-34acf0
Price: 39.99 USD
Availability: OutOfStock

SKU:FLO-34acf0

Achieve precision flow control with our durable ball NPT nipple for liquids and gases. Ideal for institutional use.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

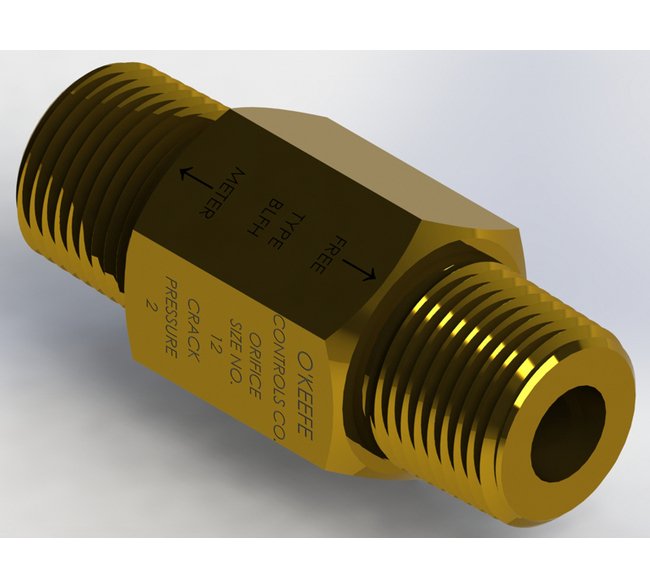

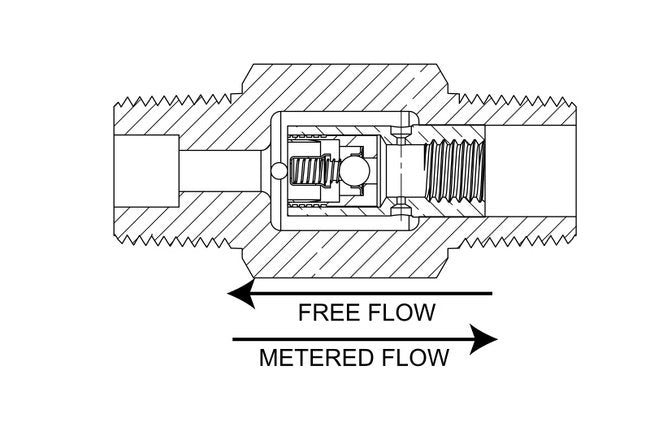

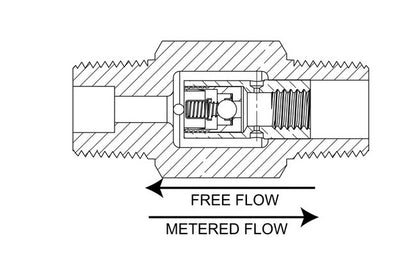

The Precision Fixed Flow Control Ball NPT Nipple offers a reliable solution for controlling flow in both liquids and gases. Featuring a parallel arrangement of a ball check valve and a precision orifice, it ensures free flow in one direction and controlled flow in the other. Crafted from durable brass and 304 stainless steel, this product guarantees long-lasting performance. With a tamperproof orifice and high pressure capacity, it meets the rigorous demands of institutional and government buyers. Choose this precision flow control for dependable operation and high-quality construction.

Product Specifications

Dimensions Orifice Diameter

0.052 in

Dimensions Total Length

1.4 in

Dimensions Width Across Flats Hex

9/16 in

Features Features

All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity

Flow Data Air Flow At 100 Psig

346 to 662 ftÂ³/h

Flow Data Water Flow At 100 Psig

0.8 to 1.6 gpm

Specifications Assembly Forward Cv

0.140

Specifications Ball Material

304 SS

Specifications Check Valve Cv

0.081

Specifications Connection A

1/8" NPT Male

Specifications Connection B

1/8" NPT Male

Specifications Cracking Pressure

2 psig

Specifications Cv Ratio Forward Cv Return Cv

2.37

Specifications Material

Brass

Specifications Maximum Operating Pressure Gauge

200 psig

Specifications Nominal Orifice Size

Specifications Orifice Cv Return

0.059

Specifications Screened

None
