Precision Fixed Flow Control Ball NPT Nipple

Name: Precision Fixed Flow Control Ball NPT Nipple
Brand: O'Keefe Controls Co.
SKU: FLO-4a1629
Price: 39.99 USD
Availability: OutOfStock

SKU:FLO-4a1629

Enhance flow management with Precision Fixed Flow Control Ball NPT Nipple. Reliable, efficient, and versatile for institutional needs.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

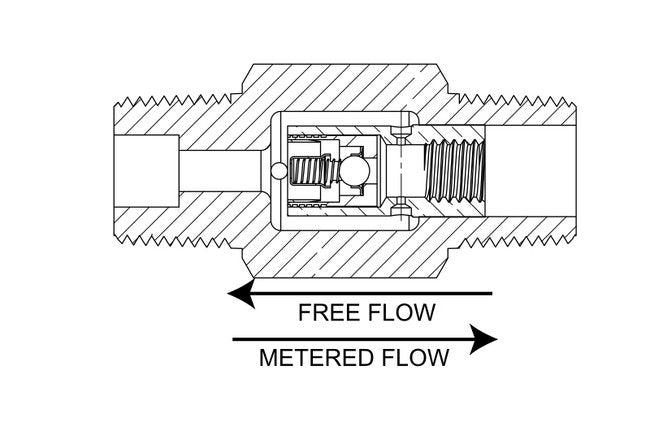

The Precision Fixed Flow Control Ball NPT Nipple offers precise flow management with its ball check valve and precision orifice design. Ideal for liquids and gases, this product, available in brass or stainless steel, ensures reliable and efficient performance. With a crack pressure of 2 psig, high pressure capacity, and tamperproof orifice, this fixed flow control is built for long-lasting operation. Its all-metal construction and choice of crack pressure make it a versatile solution for various applications, meeting the demands of institutional and government buyers.

Product Specifications

Dimensions Orifice Diameter

0.035 in

Dimensions Total Length

1.4 in

Dimensions Width Across Flats Hex

9/16 in

Features Features

All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity

Flow Data Air Flow At 100 Psig

346 to 662 ftÂ³/h

Flow Data Water Flow At 100 Psig

0.8 to 1.6 gpm

Specifications Assembly Forward Cv

0.109

Specifications Ball Material

304 SS

Specifications Check Valve Cv

0.081

Specifications Connection A

1/8" NPT Male

Specifications Connection B

1/8" NPT Male

Specifications Cracking Pressure

2 psig

Specifications Cv Ratio Forward Cv Return Cv

3.89

Specifications Material

303 SS

Specifications Maximum Operating Pressure Gauge

200 psig

Specifications Nominal Orifice Size

Specifications Orifice Cv Return

0.028

Specifications Screened

None

Precision Fixed Flow Control Ball NPT Nipple
