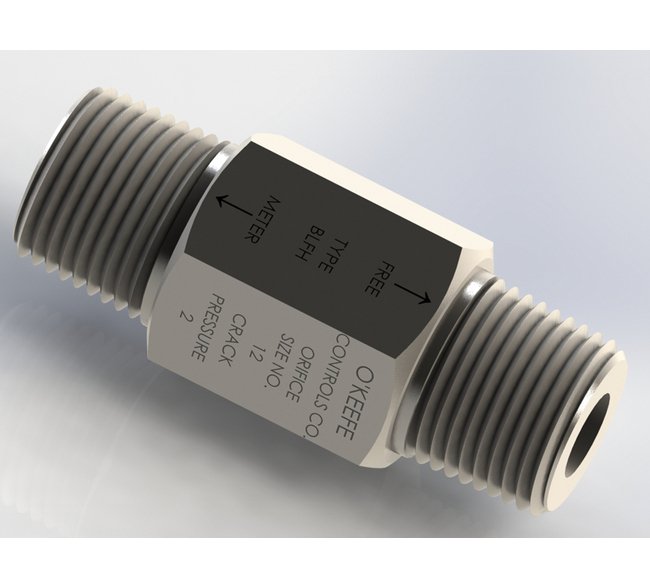

Precision Fixed Flow Control - Ball Type NPT Valve
Precision Fixed Flow Control - Ball Type NPT Valve
SKU:FLO-d184e9
High-performance Precision Fixed Flow Control for precise liquid and gas regulation. Durable construction, tamper-proof design, and high-pressure capacity.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Precision Fixed Flow Control - Ball Type NPT Valve
$89.99
Quantity: 1
Claim Your Seller Account
Precision Fixed Flow Control - Ball Type NPT Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Fixed Flow Control - Ball Type NPT Valve is a high-performance solution designed for precise flow regulation in both liquid and gas applications. Featuring a parallel arrangement of a ball check valve and a precision orifice, this product ensures free flow in one direction and metered flow in the opposite direction. Constructed with durable 303 SS and 304 SS materials and sealed with Loctite 609/680, this valve offers a nominal orifice size of 0.035 in and a cracking pressure of 2 psig. With a maximum operating pressure gauge of 2000 psig, it provides reliable performance and long-lasting durability. The tamper-proof design and high-pressure capacity make it ideal for industrial and institutional settings, ensuring smooth and accurate flow control.
Product Specifications
Dimensions Orifice Diameter
0.035 in
Dimensions Total Length
1.4 in
Dimensions Width Across Flats Hex
9/16 in
Features Features
All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity
Flow Data Air Flow At 100 Psig
346 to 662 ft³/h
Flow Data Water Flow At 100 Psig
0.8 to 1.6 gpm
Specifications Additional Wetted Material
Loctite 609 / 680
Specifications Assembly Forward Cv
0.109
Specifications Ball Material
304 SS
Specifications Check Valve Cv
0.081
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/8" NPT Male
Specifications Cracking Pressure
2 psig
Specifications Cv Ratio Forward Cv Return Cv
3.89
Specifications Material
303 SS
Specifications Maximum Operating Pressure Gauge
2000 psig
Specifications Nominal Orifice Size
35
Specifications Orifice Cv Return
0.028
Specifications Screened
None
Specifications Seal Material
Loctite 609, 680
