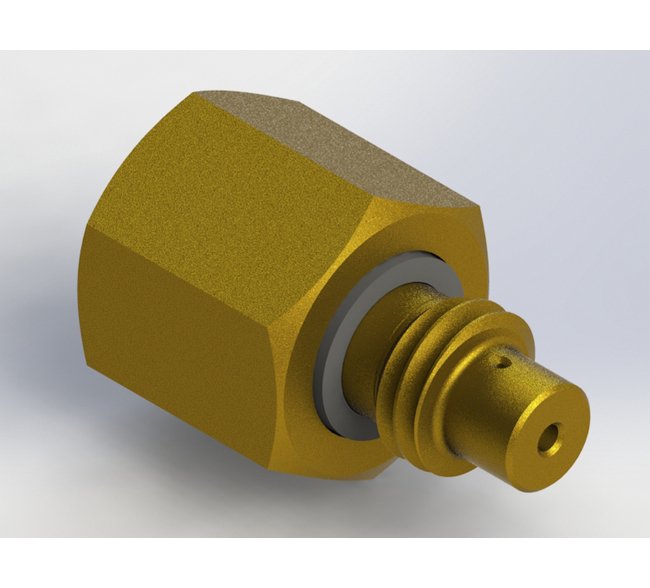

Precision Fixed Flow Control Ball UNF/UNC Adapter
Precision Fixed Flow Control Ball UNF/UNC Adapter
SKU:FLO-945492
Achieve precise flow control with our Precision Fixed Flow Ball UNF/UNC Adapter. Ideal for accurate metered flow in a cost-effective design.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Fixed Flow Control Ball UNF/UNC Adapter
$29.99
Quantity: 1
Claim Your Seller Account
Precision Fixed Flow Control Ball UNF/UNC Adapter
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Fixed Flow Control Ball UNF/UNC Adapter is a cost-effective solution designed with a stainless steel or Buna-N ball and a precision orifice for accurate flow control. It enables free flow in one direction and precise metered flow in the opposite direction. Constructed with brass material, Viton seals, and Buna-N ball, this adapter can withstand pressures up to 125 psig and temperatures up to 180°F. With 10-32 UNF male and female connections, it offers a low flow coefficient of 0.008 and complies with industry standards for reliable performance.
Product Specifications
Dimensions Orifice Diameter
0.019 in
Dimensions Total Length
0.545 in
Dimensions Width Across Flats Hex
5/16 in
Flow Data High Flow Orifice Cv2
0.008
Flow Data Low Flow Coefficient
0.008
Specifications Ball Material
Buna-N
Specifications Connection A
10-32 UNF Male
Specifications Connection B
10-32 UNF Female
Specifications Cracking Pressure
125 psig
Specifications Material
Brass
Specifications Maximum Operating Pressure Gauge
125 psig
Specifications Maximum Temperature
180 ºF
Specifications Nominal Orifice Size
19
Specifications Screened
None
Specifications Seal Material
Viton
