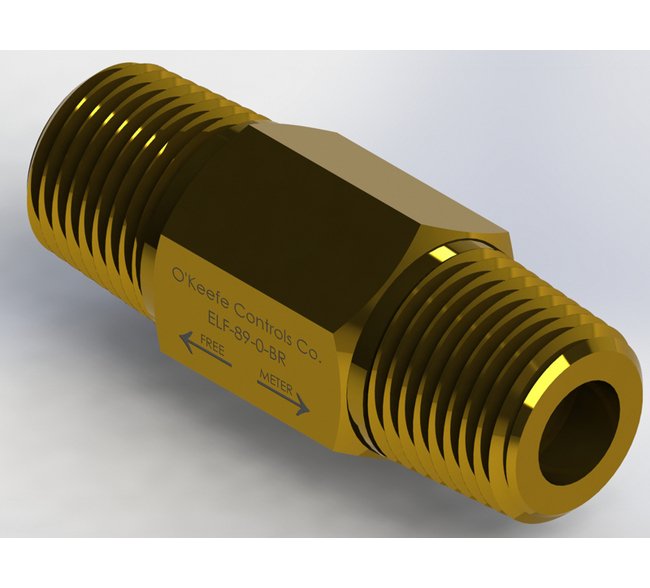

Precision Fixed Flow Control Ball Valve NPT Nipple - Brass/Stainless Steel

Name: Precision Fixed Flow Control Ball Valve NPT Nipple - Brass/Stainless Steel
Brand: O'Keefe Controls Co.
SKU: FLO-559357
Price: 89.99 USD
Availability: OutOfStock

SKU:FLO-559357

Reliable precision flow control valve for liquids and gases, meets institutional procurement standards.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

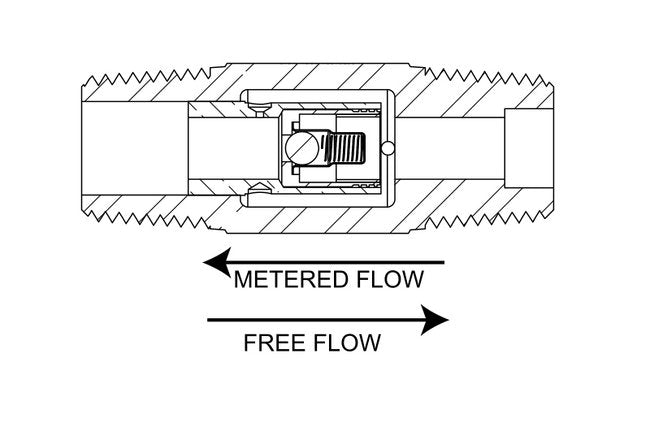

The Precision Fixed Flow Control Ball Valve NPT Nipple combines a ball check valve and precision orifice for reliable flow control. Designed for liquids and gases, this product offers a crack pressure of 15 psig, high pressure capacity, and all-metal construction for durability. With dimensions of 1.91in total length and orifice diameter of 0.0730in, this valve ensures precise regulation. Ideal for institutional applications, it meets strict government procurement standards and offers tamper-proof orifice and long operational life.

Product Specifications

Dimensions Orifice Diameter

0.0730 in

Dimensions Total Length

1.91 in

Dimensions Width Across Flats Hex

11/16 in

Features Features

All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity

Flow Data Air Flow At 100 Psig

809 to 1650 ftÂ³/h

Flow Data Water Flow At 100 Psig

1.9 to 3.9 gpm

Specifications Assembly Forward Cv

0.311

Specifications Ball Material

304 SS

Specifications Check Valve Cv

0.191

Specifications Connection A

1/4" NPT Male

Specifications Connection B

1/4" NPT Female

Specifications Cracking Pressure

15 psig

Specifications Cv Ratio Forward Cv Return Cv

2.59

Specifications Material

Brass

Specifications Maximum Operating Pressure Gauge

200 psig

Specifications Nominal Orifice Size

Specifications Orifice Cv Return

0.12

Specifications Screened

None

Precision Fixed Flow Control Ball Valve NPT Nipple - Brass/Stainless Steel
