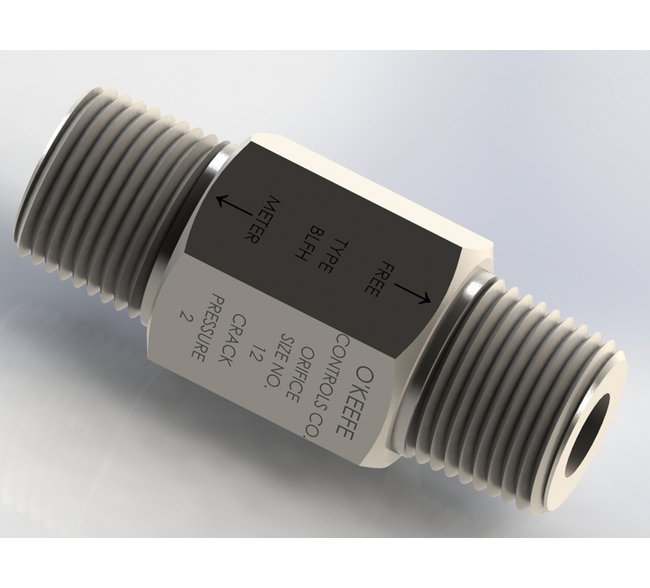

Precision Fixed Flow Control Nipple - Ball Type NPT Connector
Precision Fixed Flow Control Nipple - Ball Type NPT Connector
SKU:FLO-088a4d
Achieve precise flow control with our durable Precision Fixed Flow Nipple. Ideal for liquids and gases, high pressure-rated with tamper-proof design.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Precision Fixed Flow Control Nipple - Ball Type NPT Connector
$39.99
Quantity: 1
Claim Your Seller Account
Precision Fixed Flow Control Nipple - Ball Type NPT Connector
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Fixed Flow Control Nipple with Ball Type NPT Connector is a sophisticated solution that combines a ball check valve and precision orifice for precise flow regulation. This device ensures free flow in one direction and metered flow in the other, catering to both liquid and gas applications. Crafted from high-grade 303 SS and 304 SS materials, it boasts a durable construction suitable for high-pressure environments with a cracking pressure of 2 psig. With a range of flow capacities for air and water, this product offers long-life operation, tamper-proof orifice, and exceptional high-pressure handling capabilities.
Product Specifications
Dimensions Orifice Diameter
0.038 in
Dimensions Total Length
1.4 in
Dimensions Width Across Flats Hex
9/16 in
Features Features
All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity
Flow Data Air Flow At 100 Psig
346 to 662 ft³/h
Flow Data Water Flow At 100 Psig
0.8 to 1.6 gpm
Specifications Additional Wetted Material
Loctite 609 / 680
Specifications Assembly Forward Cv
0.113
Specifications Ball Material
304 SS
Specifications Check Valve Cv
0.081
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/8" NPT Male
Specifications Cracking Pressure
2 psig
Specifications Cv Ratio Forward Cv Return Cv
3.53
Specifications Material
303 SS
Specifications Maximum Operating Pressure Gauge
2000 psig
Specifications Nominal Orifice Size
38
Specifications Orifice Cv Return
0.032
Specifications Screened
None
Specifications Seal Material
Loctite 609, 680
