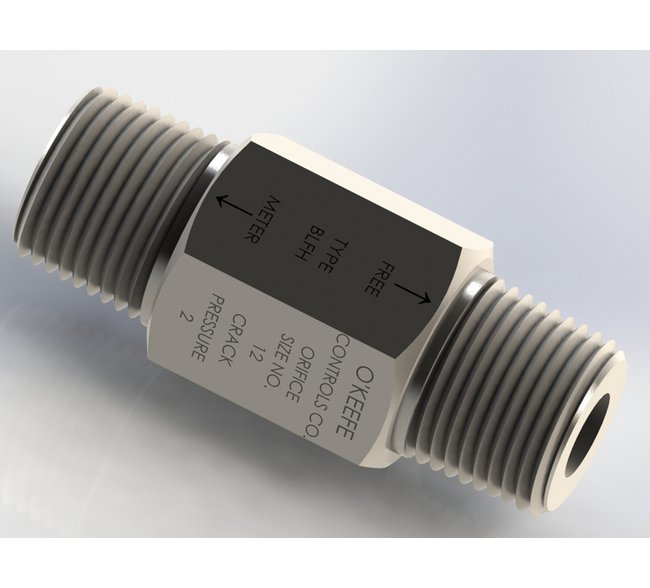

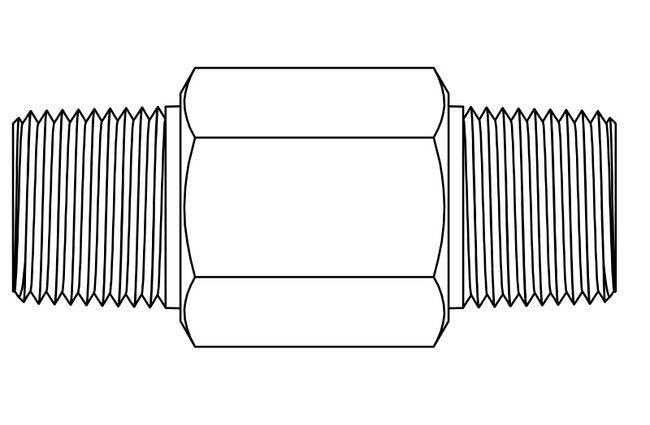

Precision Fixed Flow Control NPT Ball Nipple
Precision Fixed Flow Control NPT Ball Nipple
SKU:FLO-631c99
Reliable flow regulation with precision design for liquids & gases. Durable construction for long-lasting performance.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Precision Fixed Flow Control NPT Ball Nipple
$59.99
Quantity: 1
Claim Your Seller Account
Precision Fixed Flow Control NPT Ball Nipple
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

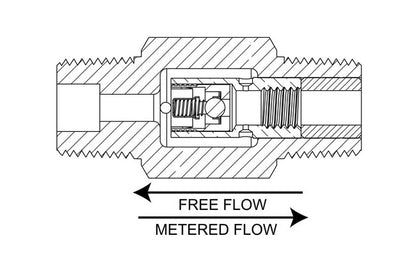

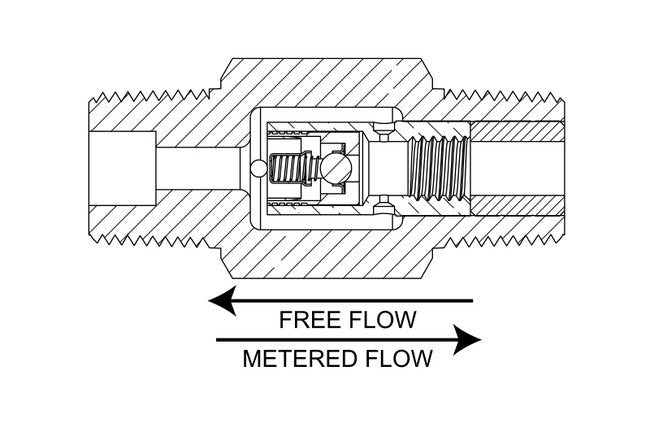

The Precision Fixed Flow Control NPT Ball Nipple offers reliable flow regulation with its parallel ball check valve and precision orifice design. Ideal for diverse applications with liquids and gases, this control features a durable construction in 303 SS material with 304 SS ball. With precise specifications including a maximum operating pressure of 2000 psig and a tamper-proof orifice, this fixed flow control ensures long-lasting performance and high-pressure capacity. Experience optimal flow management and durability with this essential component.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Orifice Diameter
0.011 in
Dimensions Total Length
1.4 in
Dimensions Width Across Flats Hex
9/16 in
Features Features
All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity
Flow Data Air Flow At 100 Psig
346 to 662 ft³/h
Flow Data Water Flow At 100 Psig
0.8 to 1.6 gpm
Specifications Additional Wetted Material
Loctite 609 / 680
Specifications Assembly Forward Cv
0.084
Specifications Ball Material
304 SS
Specifications Check Valve Cv
0.081
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/8" NPT Male
Specifications Cracking Pressure
0 psig
Specifications Cv Ratio Forward Cv Return Cv
29.93
Specifications Material
303 SS
Specifications Maximum Operating Pressure Gauge
2000 psig
Specifications Nominal Orifice Size
11
Specifications Orifice Cv Return
0.0028
Specifications Screened
None
Specifications Seal Material
Loctite 609, 680
