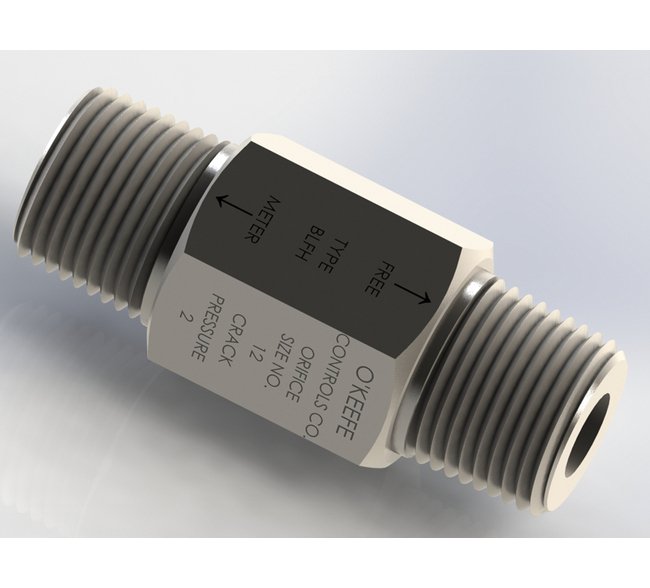

Precision Fixed Flow Control NPT Nipple
Precision Fixed Flow Control NPT Nipple
SKU:FLO-7c963d
Reliable Precision Fixed Flow Control NPT Nipple for accurate flow control in liquids and gases.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Fixed Flow Control NPT Nipple
$29.99
Quantity: 1
Claim Your Seller Account
Precision Fixed Flow Control NPT Nipple
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Fixed Flow Control NPT Nipple is a vital component with a parallel arrangement of a ball check valve and a precision orifice, ensuring free flow in one direction and metered flow in the other. Crafted from high-grade 303 SS and boasting a 304 SS ball, this product offers exceptional durability and reliability for both liquids and gases. With dimensions including an orifice diameter of 0.033 in and a maximum operating pressure of 2000 psig, it provides accurate flow control with a choice of cracking pressure, tamperproof orifice, and high-pressure capacity. Ideal for applications requiring precision and longevity.
Product Specifications
Dimensions Orifice Diameter
0.033 in
Dimensions Total Length
1.4 in
Dimensions Width Across Flats Hex
9/16 in
Features Features
All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity
Flow Data Air Flow At 100 Psig
346 to 662 ft³/h
Flow Data Water Flow At 100 Psig
0.8 to 1.6 gpm
Specifications Additional Wetted Material
Loctite 609 / 680
Specifications Assembly Forward Cv
0.106
Specifications Ball Material
304 SS
Specifications Check Valve Cv
0.081
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/8" NPT Male
Specifications Cracking Pressure
0 psig
Specifications Cv Ratio Forward Cv Return Cv
4.24
Specifications Material
303 SS
Specifications Maximum Operating Pressure Gauge
2000 psig
Specifications Nominal Orifice Size
33
Specifications Orifice Cv Return
0.025
Specifications Screened
None
Specifications Seal Material
Loctite 609, 680
