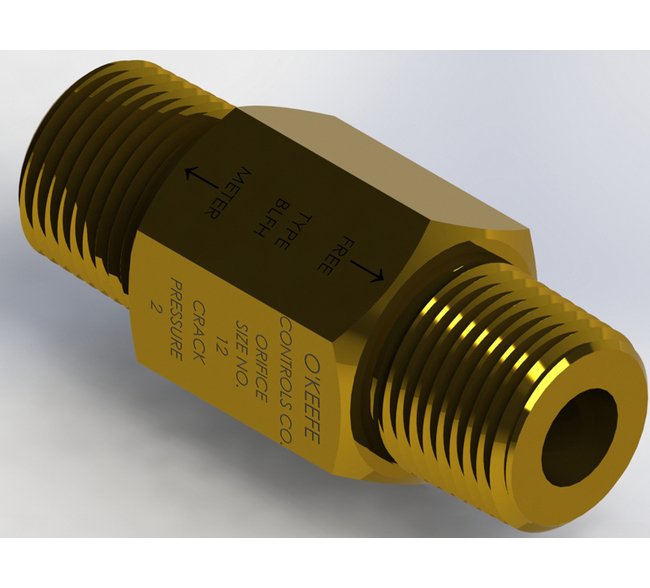

Precision Fixed Flow Control NPT Nipple
Precision Fixed Flow Control NPT Nipple
SKU:FLO-09ac27
Experience precise flow control with our high-pressure Brass and 304 SS NPT Nipple
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Precision Fixed Flow Control NPT Nipple
$49.99
Quantity: 1
Claim Your Seller Account
Precision Fixed Flow Control NPT Nipple
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Fixed Flow Control NPT Nipple is a reliable solution for controlling flow in both directions with its innovative ball check valve and precise orifice design. Crafted from durable brass and 304 SS materials, this fixed flow control offers exceptional performance for liquids and gases. With a maximum operating pressure of 2000 psig and a CV Ratio of 7.75, it ensures consistent and efficient flow regulation. Choose tamperproof orifice settings and benefit from its high-pressure capacity, making it ideal for various applications demanding accuracy and reliability.
Product Specifications
Dimensions Orifice Diameter
0.023 in
Dimensions Total Length
1.4 in
Dimensions Width Across Flats Hex
9/16 in
Features Features
All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity
Flow Data Air Flow At 100 Psig
346 to 662 ft³/h
Flow Data Water Flow At 100 Psig
0.8 to 1.6 gpm
Specifications Additional Wetted Material
Loctite 609 / 680
Specifications Assembly Forward Cv
0.093
Specifications Ball Material
304 SS
Specifications Check Valve Cv
0.081
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/8" NPT Male
Specifications Cracking Pressure
10 psig
Specifications Cv Ratio Forward Cv Return Cv
7.75
Specifications Material
Brass
Specifications Maximum Operating Pressure Gauge
2000 psig
Specifications Nominal Orifice Size
23
Specifications Orifice Cv Return
0.012
Specifications Screened
None
Specifications Seal Material
Loctite 609, 680
