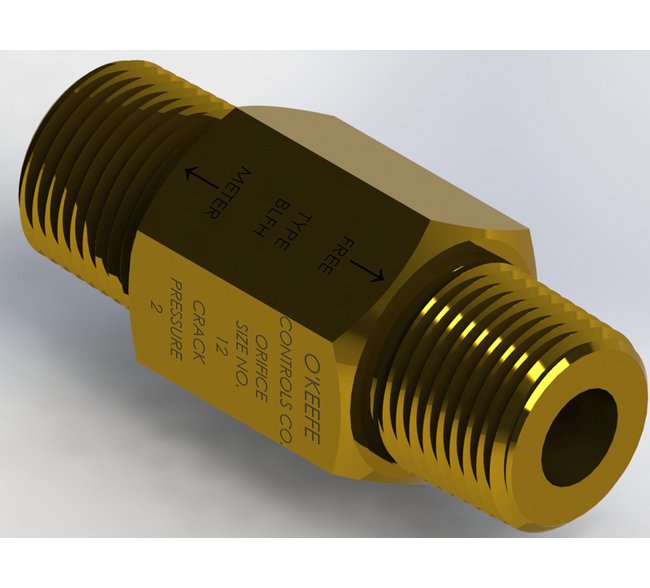

Precision Fixed Flow Control NPT Nipple - Brass Ball Type
Precision Fixed Flow Control NPT Nipple - Brass Ball Type
SKU:FLO-7e6505
Versatile Precision Fixed Flow Control for reliable flow regulation in liquids and gases. Durable brass construction with tamperproof orifice and high-pressure capacity.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Precision Fixed Flow Control NPT Nipple - Brass Ball Type
$45.99
Quantity: 1
Claim Your Seller Account
Precision Fixed Flow Control NPT Nipple - Brass Ball Type
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Fixed Flow Controls - Ball Type NPT Nipple is a versatile solution featuring a parallel arrangement of a ball check valve and a precise orifice. Designed for precise flow control, it allows free flow in one direction and metered flow in the other. Constructed with durable brass and 304 SS materials, this device offers a tamperproof orifice, high pressure capacity, and a long operational lifespan. With a choice of cracking pressures and a robust design, it is suitable for use with liquids and gases. The product's dimensions include an orifice diameter of 0.035 in, a width across flats of 9/16 in, and a total length of 1.4 in.
Product Specifications
Dimensions Orifice Diameter
0.035 in
Dimensions Total Length
1.4 in
Dimensions Width Across Flats Hex
9/16 in
Features Features
All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity
Flow Data Air Flow At 100 Psig
346 to 662 ft³/h
Flow Data Water Flow At 100 Psig
0.8 to 1.6 gpm
Specifications Additional Wetted Material
Loctite 609 / 680
Specifications Assembly Forward Cv
0.109
Specifications Ball Material
304 SS
Specifications Check Valve Cv
0.081
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/8" NPT Male
Specifications Cracking Pressure
0 psig
Specifications Cv Ratio Forward Cv Return Cv
3.89
Specifications Material
Brass
Specifications Maximum Operating Pressure Gauge
2000 psig
Specifications Nominal Orifice Size
35
Specifications Orifice Cv Return
0.028
Specifications Screened
None
Specifications Seal Material
Loctite 609, 680
