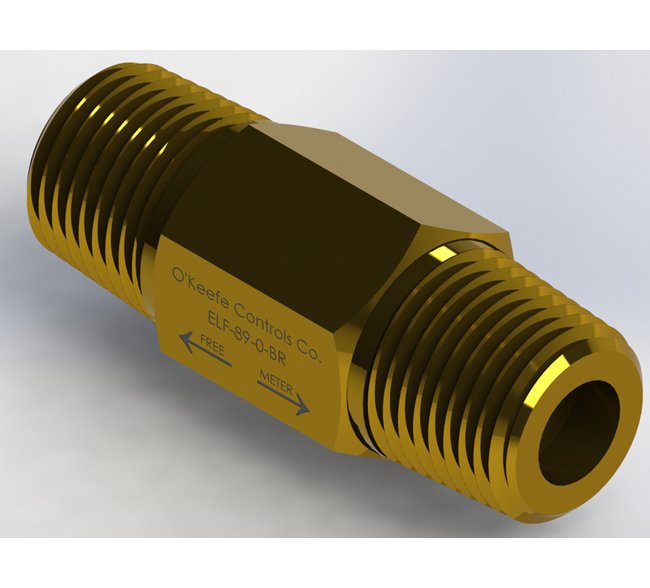

Precision Fixed Flow Control NPT Nipple Valve

Name: Precision Fixed Flow Control NPT Nipple Valve
Brand: O'Keefe Controls Co.
SKU: FLO-479969
Price: 49.99 USD
Availability: OutOfStock

SKU:FLO-479969

Reliable Precision Fixed Flow Control Valve for liquids and gases. Durable Brass & 304 SS construction, tamperproof orifice, high pressure capacity. Ideal for institutional buyers.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Precision Fixed Flow Control NPT Nipple Valve is a reliable solution for precise flow regulation in both liquids and gases. Constructed with high-quality Brass and 304 SS materials, this valve offers exceptional durability and performance. Featuring a tamperproof orifice and a choice of cracking pressures, it ensures long-term operation and high pressure capacity. With a CV ratio of 2.47, this valve guarantees accurate flow control in various applications, making it ideal for institutional and government buyers seeking quality and reliability.

Product Specifications

Dimensions Orifice Diameter

0.0760 in

Dimensions Total Length

1.91 in

Dimensions Width Across Flats Hex

11/16 in

Features Features

All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity

Flow Data Air Flow At 100 Psig

809 to 1650 ftÂ³/h

Flow Data Water Flow At 100 Psig

1.9 to 3.9 gpm

Specifications Assembly Forward Cv

0.321

Specifications Ball Material

304 SS

Specifications Check Valve Cv

0.191

Specifications Connection A

1/4" NPT Male

Specifications Connection B

1/4" NPT Female

Specifications Cracking Pressure

15 psig

Specifications Cv Ratio Forward Cv Return Cv

2.47

Specifications Material

Brass

Specifications Maximum Operating Pressure Gauge

200 psig

Specifications Nominal Orifice Size

Specifications Orifice Cv Return

0.13

Specifications Screened

None
