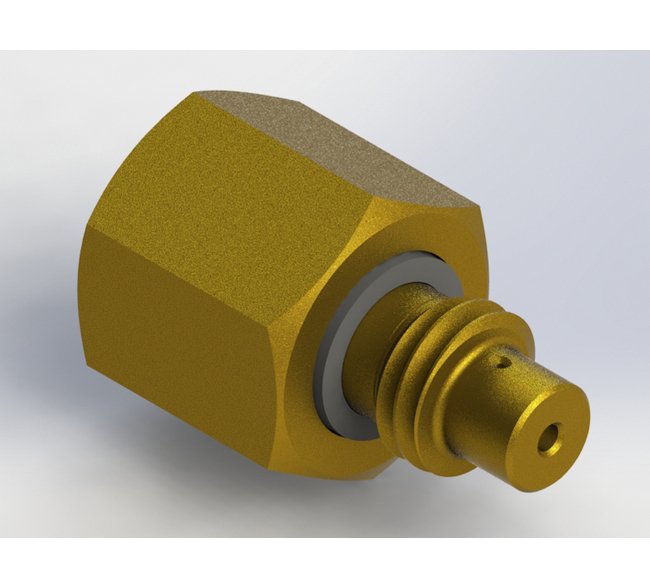

Precision Fixed Flow Controls Adapter - UNF/UNC 10-32 Male/Female

Name: Precision Fixed Flow Controls Adapter - UNF/UNC 10-32 Male/Female
Brand: O'Keefe Controls Co.
SKU: FLO-724b0b
Price: 24.99 USD
Availability: OutOfStock

SKU:FLO-724b0b

Enhance flow control with Precision Fixed Flow Adapter - stainless steel ball, brass body, 10-32 UNF, reliable performance.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Precision Fixed Flow Controls Adapter features a stainless steel ball with a precision orifice, ensuring free flow in one direction and metered flow in the opposite. Made of brass with Viton seals and Buna-N ball, it offers a nominal orifice size of 0.007 inches and a low flow coefficient of 0.0012. With a cracking pressure of 125 psig and maximum operating pressure of 125 psig, this adapter guarantees reliable performance. Suitable for 10-32 UNF connections, it comes in a compact design for easy installation and maintenance.

Product Specifications

Dimensions Orifice Diameter

0.007 in

Dimensions Total Length

0.545 in

Dimensions Width Across Flats Hex

5/16 in

Flow Data Low Flow Coefficient

0.0012

Specifications Ball Material

Buna-N

Specifications Connection A

10-32 UNF Male

Specifications Connection B

10-32 UNF Female

Specifications Cracking Pressure

125 psig

Specifications Material

Brass

Specifications Maximum Operating Pressure Gauge

125 psig

Specifications Maximum Temperature

180 ÂºF

Specifications Nominal Orifice Size

Specifications Screened

None

Specifications Seal Material

Viton

Precision Fixed Flow Controls Adapter - UNF/UNC 10-32 Male/Female
