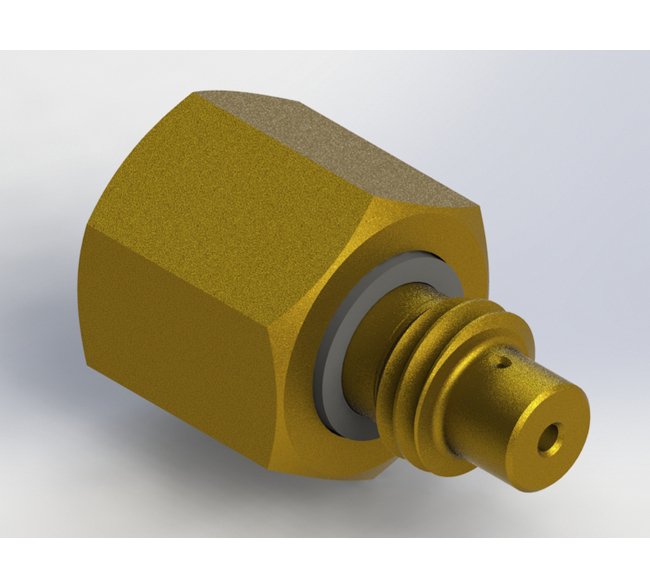

Precision Fixed Flow Controls Ball Type Adapter UNF/UNC - 10-32 Threads
Precision Fixed Flow Controls Ball Type Adapter UNF/UNC - 10-32 Threads
SKU:FLO-972aa9
Optimize fluid control with our Precision Fixed Flow Controls Ball Type Adapter UNF/UNC. Brass construction, 0.012 in orifice, & 125 psig cracking pressure.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Precision Fixed Flow Controls Ball Type Adapter UNF/UNC - 10-32 Threads
$24.99
Quantity: 1
Claim Your Seller Account
Precision Fixed Flow Controls Ball Type Adapter UNF/UNC - 10-32 Threads
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance fluid control with our Precision Fixed Flow Controls Ball Type Adapter UNF/UNC. Crafted with brass and Viton seal, featuring a stainless steel ball with a precise 0.012 in orifice. This adapter ensures metered flow in one direction and free flow in the other, meeting stringent procurement standards with a cracking pressure of 125 psig and temperature resistance up to 180 °F. Ideal for precise flow regulation in industrial settings.
Product Specifications
Dimensions Orifice Diameter
0.012 in
Dimensions Total Length
0.545 in
Dimensions Width Across Flats Hex
5/16 in
Flow Data High Flow Orifice Cv2
0.0034
Flow Data Low Flow Coefficient
0.0034
Specifications Ball Material
Buna-N
Specifications Connection A
10-32 UNF Male
Specifications Connection B
10-32 UNF Female
Specifications Cracking Pressure
125 psig
Specifications Material
Brass
Specifications Maximum Operating Pressure Gauge
125 psig
Specifications Maximum Temperature
180 ºF
Specifications Nominal Orifice Size
12
Specifications Screened
None
Specifications Seal Material
Viton
