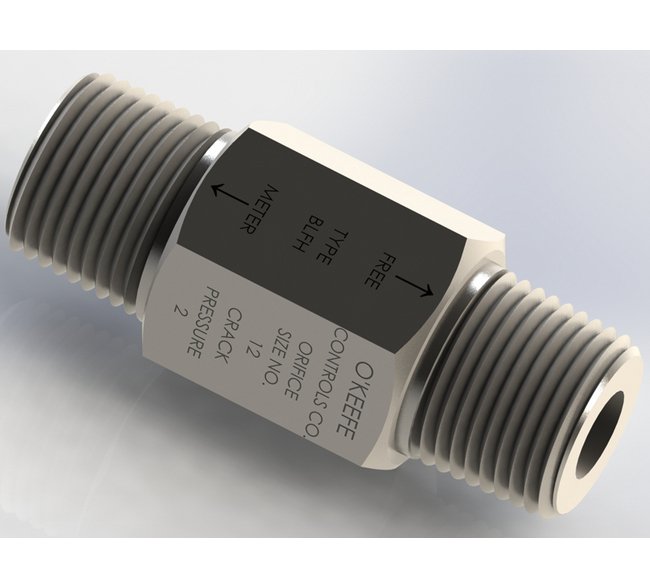

Precision Fixed Flow Controls - Ball Type NPT Nipple
Precision Fixed Flow Controls - Ball Type NPT Nipple
SKU:FLO-06c4e6
Precision Fixed Flow Controls - Ball Type NPT Nipple with durable SS construction, choice of cracking pressure, and high-pressure capacity, ensuring reliable flow control.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Precision Fixed Flow Controls - Ball Type NPT Nipple
$45.99
Quantity: 1
Claim Your Seller Account
Precision Fixed Flow Controls - Ball Type NPT Nipple
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

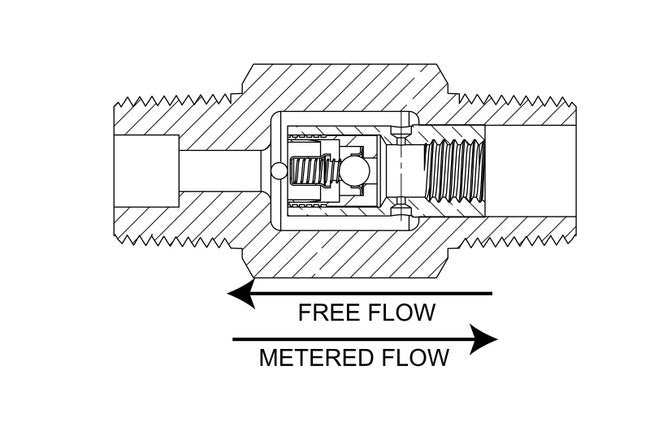

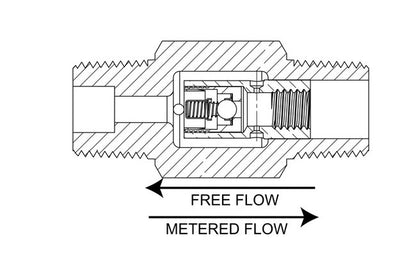

The Precision Fixed Flow Controls - Ball Type NPT Nipple feature a parallel arrangement of a ball check valve and a precision orifice ensuring metered flow in one direction and free flow in the opposite direction. Constructed from durable 303 SS with a 304 SS ball, these controls offer a choice of cracking pressure, tamperproof orifice, and high-pressure capacity. With dimensions including an orifice diameter of 0.025 in, width across flats (hex) of 9/16 in, and a total length of 1.4 in, these controls deliver reliable performance for liquids and gases. Air flow ranges from 346 to 662 ft³/h at 100 psig, while water flow varies from 0.8 to 1.6 gpm, making them versatile for multiple applications.
Product Specifications
Dimensions Orifice Diameter
0.025 in

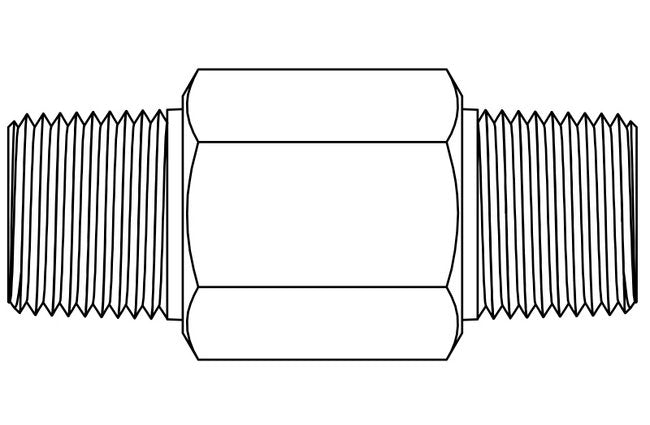

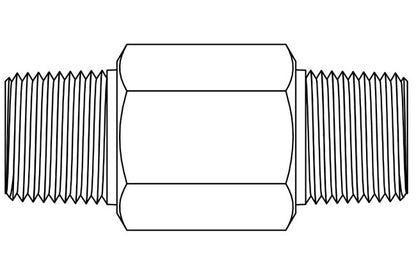

Dimensions Total Length
1.4 in
Dimensions Width Across Flats Hex
9/16 in
Features Features
All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity
Flow Data Air Flow At 100 Psig
346 to 662 ft³/h
Flow Data Water Flow At 100 Psig
0.8 to 1.6 gpm
Specifications Assembly Forward Cv
0.095
Specifications Ball Material
304 SS
Specifications Check Valve Cv
0.081
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/8" NPT Male
Specifications Cracking Pressure
2 psig
Specifications Cv Ratio Forward Cv Return Cv
6.79
Specifications Material
303 SS
Specifications Maximum Operating Pressure Gauge
200 psig
Specifications Nominal Orifice Size
25
Specifications Orifice Cv Return
0.014
Specifications Screened
None
