Precision Fixed Flow Controls - Ball Type NPT Nipple
Precision Fixed Flow Controls - Ball Type NPT Nipple
SKU:FLO-7b7ff6
Achieve precise flow control in both liquids and gases with the Precision Fixed Flow Controls - Ball Type NPT Nipple. Brass construction, high-pressure capacity, tamperproof design.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Precision Fixed Flow Controls - Ball Type NPT Nipple
$69.99
Quantity: 1
Claim Your Seller Account
Precision Fixed Flow Controls - Ball Type NPT Nipple
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

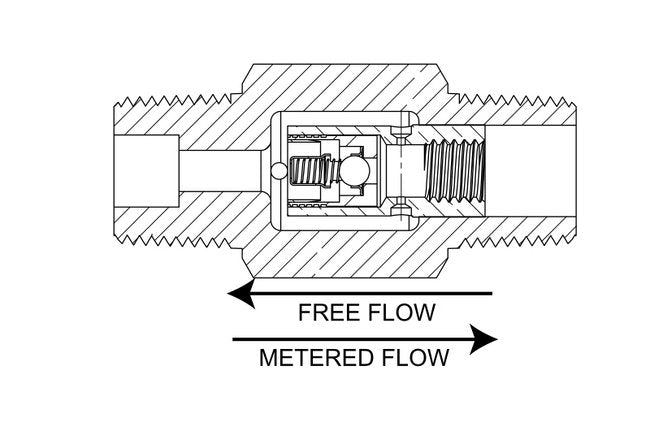

The Precision Fixed Flow Controls - Ball Type NPT Nipple features a parallel arrangement of a ball check valve and a precision orifice, ensuring free flow in one direction and metered flow in the other. Crafted from high-grade Brass with a 304 SS Ball, it offers a Nominal Orifice Size of 22 and a Maximum Operating Pressure Gauge of 200 psig. With Air Flow ranging from 346 to 662 ft³/h and Water Flow from 0.8 to 1.6 gpm at 100 psig, this high-quality fixture guarantees long life operation, tamperproof design, and high-pressure capacity.
Product Specifications
Dimensions Orifice Diameter
0.022 in
Dimensions Total Length
1.4 in
Dimensions Width Across Flats Hex
9/16 in
Features Features
All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity
Flow Data Air Flow At 100 Psig
346 to 662 ft³/h
Flow Data Water Flow At 100 Psig
0.8 to 1.6 gpm
Specifications Assembly Forward Cv
0.092
Specifications Ball Material
304 SS
Specifications Check Valve Cv
0.081
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/8" NPT Male
Specifications Cracking Pressure
0 psig
Specifications Cv Ratio Forward Cv Return Cv
8.36
Specifications Material
Brass
Specifications Maximum Operating Pressure Gauge
200 psig
Specifications Nominal Orifice Size
22
Specifications Orifice Cv Return
0.011
Specifications Screened
None
