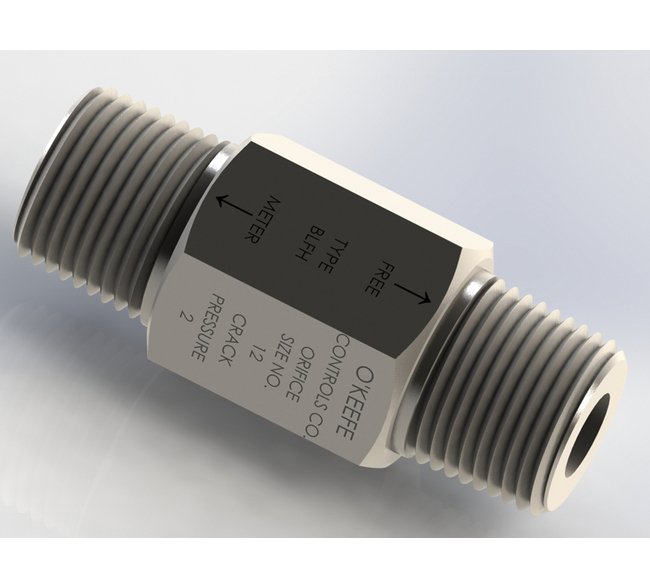

Precision Fixed Flow Controls - Ball Type NPT Nipple
Precision Fixed Flow Controls - Ball Type NPT Nipple
SKU:FLO-2edc16
Enhance fluid control with our Precision Fixed Flow Controls for reliable, tamperproof, and high-pressure regulation.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Precision Fixed Flow Controls - Ball Type NPT Nipple
$49.99
Quantity: 1
Claim Your Seller Account
Precision Fixed Flow Controls - Ball Type NPT Nipple
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your fluid control systems with our Precision Fixed Flow Controls. Featuring a parallel arrangement of a ball check valve and a precision orifice, these controls ensure free flow in one direction and metered flow in the other. Crafted from high-quality 303 SS and 304 SS materials, with a maximum operating pressure of 2000 psig, these controls offer reliability, longevity, and a tamperproof design. Ideal for both liquids and gases, explore their high-pressure capacity and adjustable cracking pressure for precise flow regulation.
Product Specifications
Dimensions Orifice Diameter
0.025 in
Dimensions Total Length
1.4 in
Dimensions Width Across Flats Hex
9/16 in
Features Features
All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity
Flow Data Air Flow At 100 Psig
346 to 662 ft³/h
Flow Data Water Flow At 100 Psig
0.8 to 1.6 gpm
Specifications Additional Wetted Material
Loctite 609 / 680
Specifications Assembly Forward Cv
0.095
Specifications Ball Material
304 SS
Specifications Check Valve Cv
0.081
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/8" NPT Male
Specifications Cracking Pressure
0 psig
Specifications Cv Ratio Forward Cv Return Cv
6.79
Specifications Material
303 SS
Specifications Maximum Operating Pressure Gauge
2000 psig
Specifications Nominal Orifice Size
25
Specifications Orifice Cv Return
0.014
Specifications Screened
None
Specifications Seal Material
Loctite 609, 680
