Precision Fixed Flow Controls - Ball Type NPT Nipple, 303 SS

Precision Fixed Flow Controls - Ball Type NPT Nipple, 303 SS

FLO-9ef652

Enhance fluid & gas control with Precision Fixed Flow Controls - Ball Type NPT Nipple, 303SS

$49.99
$49.99
Sale

Initiate Order

Precision Fixed Flow Controls - Ball Type NPT Nipple, 303 SS

Precision Fixed Flow Controls - Ball Type NPT Nipple, 303 SS

$49.99

Quantity: 1

Claim Your Seller Account

Precision Fixed Flow Controls - Ball Type NPT Nipple, 303 SS

Precision Fixed Flow Controls - Ball Type NPT Nipple, 303 SS

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

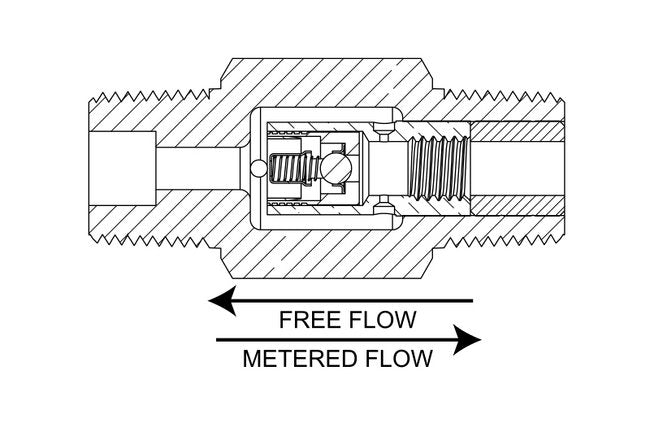

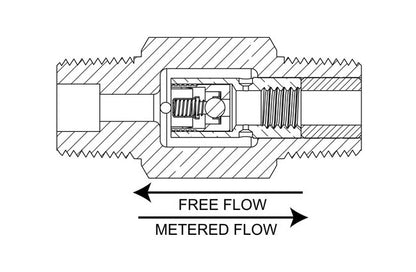

Upgrade your fluid and gas control systems with our Precision Fixed Flow Controls. Built with 303 SS material and a ball check valve, these controls ensure precise metered flow in one direction and free flow in the other. With a maximum operating pressure gauge of 2000 psig and all-metal construction, these controls offer durability, tamper-proof orifice, and high-pressure capacity. Suitable for a range of applications, our controls provide long-lasting, reliable performance.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Dimensions Orifice Diameter
0.039 in
Dimensions Total Length
1.4 in
Dimensions Width Across Flats Hex
9/16 in
Features Features
All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity
Flow Data Air Flow At 100 Psig
346 to 662 ft³/h
Flow Data Water Flow At 100 Psig
0.8 to 1.6 gpm
Specifications Additional Wetted Material
Loctite 609 / 680
Specifications Assembly Forward Cv
0.114
Specifications Ball Material
304 SS
Specifications Check Valve Cv
0.081
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/8" NPT Male
Specifications Cracking Pressure
0 psig
Specifications Cv Ratio Forward Cv Return Cv
3.45
Specifications Material
303 SS
Specifications Maximum Operating Pressure Gauge
2000 psig
Specifications Nominal Orifice Size
39
Specifications Orifice Cv Return
0.033
Specifications Screened
None
Specifications Seal Material
Loctite 609, 680
