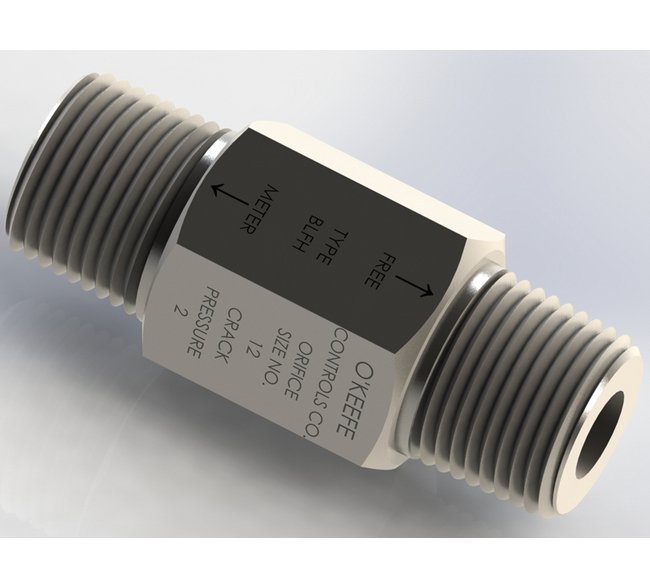

Precision Fixed Flow Controls - Ball Type NPT Nipple
Precision Fixed Flow Controls - Ball Type NPT Nipple
SKU:FLO-c91add
Achieve precise flow control with our Precision Fixed Flow Controls - Ball Type NPT. Ideal for liquids and gases, built for durability and performance.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Precision Fixed Flow Controls - Ball Type NPT Nipple
$49.99
Quantity: 1
Claim Your Seller Account
Precision Fixed Flow Controls - Ball Type NPT Nipple
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

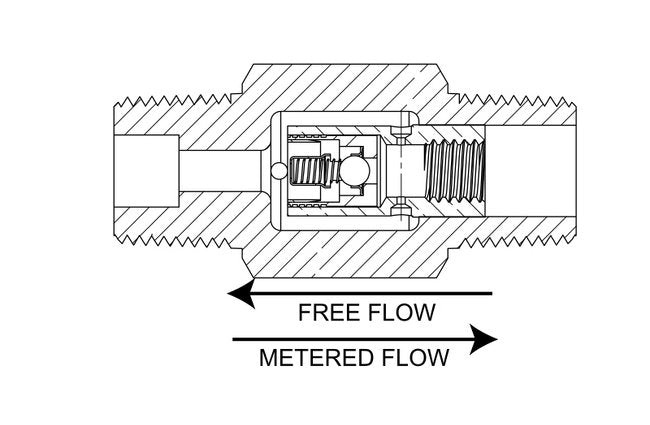

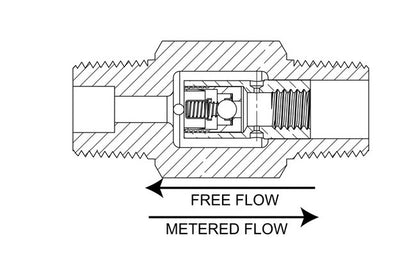

Experience precise control with our Precision Fixed Flow Controls featuring a ball check valve and precision orifice. Enjoy consistent performance in both liquid and gas applications with options in durable brass or stainless steel construction. With a tamperproof orifice, high pressure capacity, and long-lasting all-metal construction, these flow controls ensure reliable operation. Perfect for institutional needs, these controls meet strict procurement standards for quality and durability.
Product Specifications
Dimensions Orifice Diameter
0.023 in
Dimensions Total Length
1.4 in
Dimensions Width Across Flats Hex
9/16 in
Features Features
All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity
Flow Data Air Flow At 100 Psig
346 to 662 ft³/h
Flow Data Water Flow At 100 Psig
0.8 to 1.6 gpm
Specifications Assembly Forward Cv
0.093
Specifications Ball Material
304 SS
Specifications Check Valve Cv
0.081
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/8" NPT Male
Specifications Cracking Pressure
0 psig
Specifications Cv Ratio Forward Cv Return Cv
7.75
Specifications Material
303 SS
Specifications Maximum Operating Pressure Gauge
200 psig
Specifications Nominal Orifice Size
23
Specifications Orifice Cv Return
0.012
Specifications Screened
None
