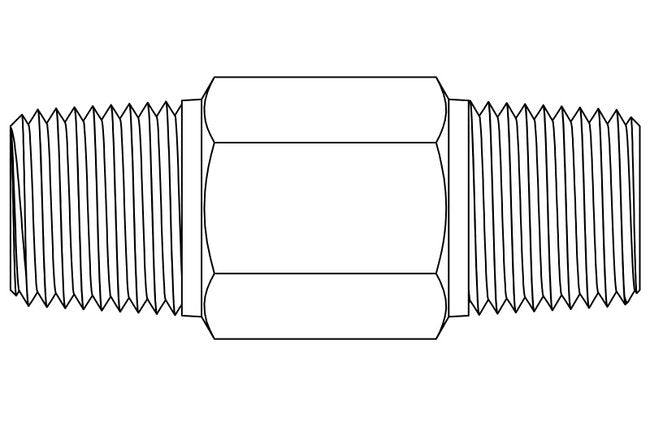

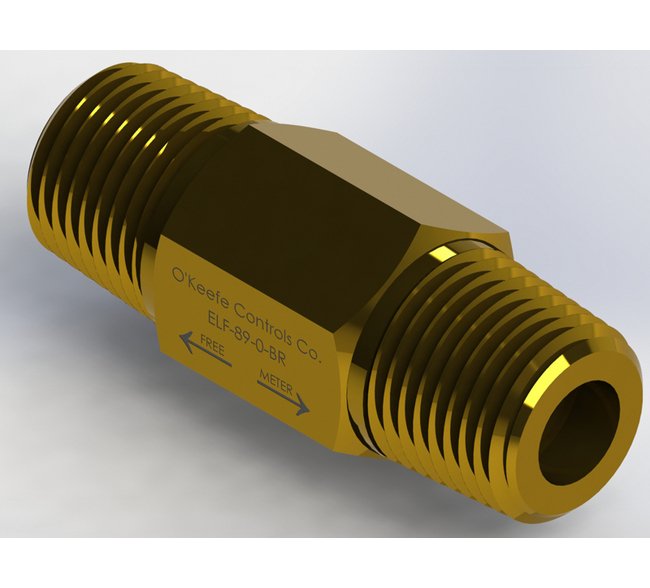

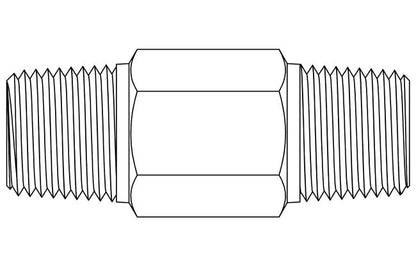

Precision Fixed Flow Controls - Ball Type NPT Nipple
Precision Fixed Flow Controls - Ball Type NPT Nipple
SKU:FLO-a5743f
Ensure precise flow regulation with our high-quality Precision Fixed Flow Controls - Ball Type NPT Nipple for liquids and gases.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Precision Fixed Flow Controls - Ball Type NPT Nipple
$49.99
Quantity: 1
Claim Your Seller Account
Precision Fixed Flow Controls - Ball Type NPT Nipple
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

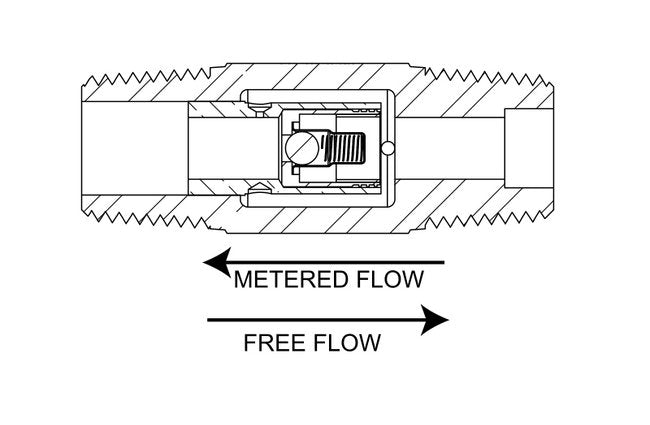

The Precision Fixed Flow Controls - Ball Type NPT Nipple is a reliable solution for precise flow regulation in both liquids and gases. This product features a parallel arrangement of a ball check valve and a precision orifice, ensuring free flow in one direction and accurate metered flow in the reverse direction. Constructed with durable Brass and 304 SS materials, it offers a high-pressure capacity and a choice of cracking pressures. The tamper-proof orifice and all-metal construction ensure long-term, dependable operation. With a CV ratio of 3.36, this flow control guarantees efficient performance and is suitable for a wide range of applications.
Product Specifications
Dimensions Orifice Diameter
0.06 in
Dimensions Total Length
1.91 in
Dimensions Width Across Flats Hex
11/16 in
Features Features
All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity
Flow Data Air Flow At 100 Psig
809 to 1650 ft³/h
Flow Data Water Flow At 100 Psig
1.9 to 3.9 gpm
Specifications Assembly Forward Cv
0.272
Specifications Ball Material
304 SS
Specifications Check Valve Cv
0.191
Specifications Connection A
1/4" NPT Male
Specifications Connection B
1/4" NPT Female
Specifications Cracking Pressure
2 psig
Specifications Cv Ratio Forward Cv Return Cv
3.36
Specifications Material
Brass
Specifications Maximum Operating Pressure Gauge
200 psig
Specifications Nominal Orifice Size
60
Specifications Orifice Cv Return
0.081
Specifications Screened
None
