Precision Flange Adapter Rings
Precision Flange Adapter Rings
SKU:ROU-c6e5ba
Extend and enhance with Precision Flange Adapter Rings. Optimal fit, multiple materials. Weldable & secure. Stocked in Steel, Stainless Steel, Aluminum.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Flange Adapter Rings
$29.99
Quantity: 1
Claim Your Seller Account
Precision Flange Adapter Rings
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

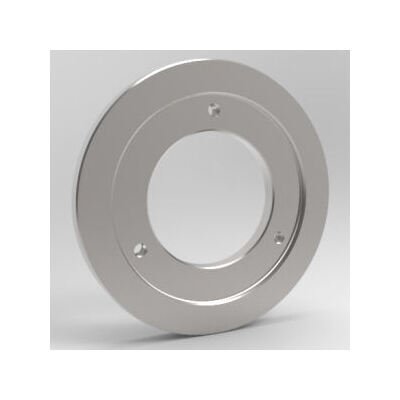

The Precision Flange Adapter Rings are meticulously crafted to extend the outer diameter of Accu-Flange™ Collars and Precision Sleeve Flange Couplings. Featuring three adapter holes for secure mounting, these rings offer the flexibility for machining to any required bolt pattern. Available in 1018 Steel, Stainless Steel, and Aluminum, with various OD options for each bore size, these weldable rings are designed for durability and precision in industrial applications.
Product Specifications
Dimensional Attributes Accu Flange Collar Bore Size
1 in
Dimensional Attributes Inside Diameter
2.127 in
Dimensional Attributes Mounting Hole
1/4-20
Dimensional Attributes Outside Diameter
5.250 in
Dimensional Attributes Width
0.375 in
Specifications Alloy
2024-T351
Specifications Approximate Weight
0.64 lb
Specifications Country Of Origin
USA
Specifications Finish
None
Specifications Material
Aluminum
Specifications Part Number
FRA1003755250
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Upc Code
662786031984
