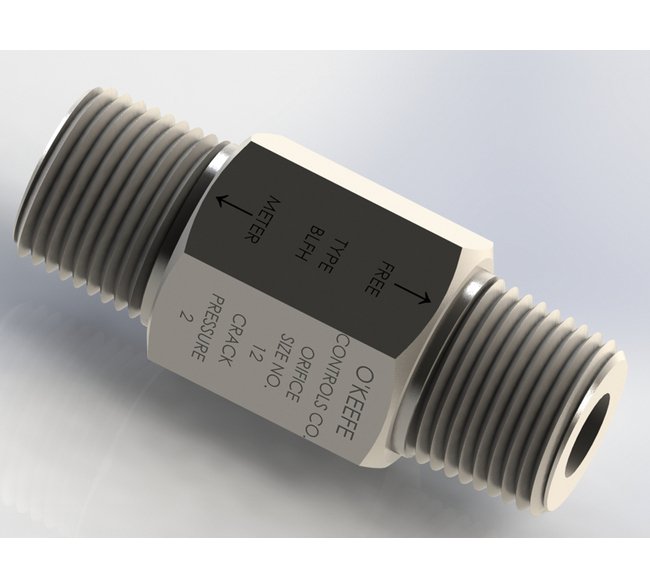

Precision Flow Control NPT Nipple
Precision Flow Control NPT Nipple
SKU:FLO-bc9c41
Achieve precise fluid and gas control with the Precision Flow Control NPT Nipple. Suitable for liquids and gases.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Precision Flow Control NPT Nipple
$39.99
Quantity: 1
Claim Your Seller Account
Precision Flow Control NPT Nipple
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Flow Control NPT Nipple combines the efficiency of a ball check valve with a precision orifice for controlled fluid and gas flow. Designed for parallel arrangement, it ensures free flow in one direction and metered flow in the opposite direction. Crafted from durable 303 SS material with a 304 SS ball, this nipple offers a tamperproof orifice and high-pressure capacity. With an orifice diameter of 0.022 in and a cracking pressure of 0 psig, it guarantees reliable performance in various applications.
Product Specifications
Dimensions Orifice Diameter
0.022 in
Dimensions Total Length
1.4 in
Dimensions Width Across Flats Hex
9/16 in
Features Features
All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity
Flow Data Air Flow At 100 Psig
346 to 662 ft³/h
Flow Data Water Flow At 100 Psig
0.8 to 1.6 gpm
Specifications Additional Wetted Material
Loctite 609 / 680
Specifications Assembly Forward Cv
0.092
Specifications Ball Material
304 SS
Specifications Check Valve Cv
0.081
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/8" NPT Male
Specifications Cracking Pressure
0 psig
Specifications Cv Ratio Forward Cv Return Cv
8.36
Specifications Material
303 SS
Specifications Maximum Operating Pressure Gauge
2000 psig
Specifications Nominal Orifice Size
22
Specifications Orifice Cv Return
0.011
Specifications Screened
None
Specifications Seal Material
Loctite 609, 680
