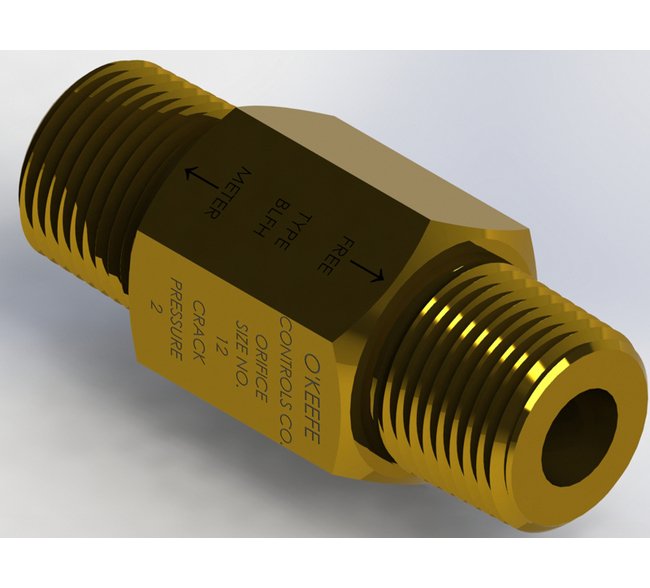

Precision Flow Control NPT Nipple
Precision Flow Control NPT Nipple
SKU:FLO-5f1a57
Achieve precise flow control with the Precision Flow Control NPT Nipple, ensuring reliability and efficiency in fluid and gas management.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Precision Flow Control NPT Nipple
$39.99
Quantity: 1
Claim Your Seller Account
Precision Flow Control NPT Nipple
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Flow Control NPT Nipple is a cutting-edge solution for managing fluid and gas flows with precision and reliability. Featuring a unique parallel arrangement of a ball check valve and a precision orifice, this product ensures free flow in one direction and metered flow in the other. Constructed with high-quality brass material and a 304 SS ball, it offers long-lasting durability and efficient performance. With a range of specifications including a cracking pressure of 2 psig, maximum operating pressure of 2000 psig, and versatile 1/8" NPT male connections, this flow control device is suitable for a variety of applications. Its tamperproof orifice design, high-pressure capacity, and choice of cracking pressure make it ideal for both consumer and institutional use.
Product Specifications
Dimensions Orifice Diameter
0.0142 in
Dimensions Total Length
1.4 in
Dimensions Width Across Flats Hex
9/16 in
Features Features
All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity
Flow Data Air Flow At 100 Psig
346 to 662 ft³/h
Flow Data Water Flow At 100 Psig
0.8 to 1.6 gpm
Specifications Additional Wetted Material
Loctite 609 / 680
Specifications Assembly Forward Cv
0.085
Specifications Ball Material
304 SS
Specifications Check Valve Cv
0.081
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/8" NPT Male
Specifications Cracking Pressure
2 psig
Specifications Cv Ratio Forward Cv Return Cv
19.84
Specifications Material
Brass
Specifications Maximum Operating Pressure Gauge
2000 psig
Specifications Nominal Orifice Size
14
Specifications Orifice Cv Return
0.0043
Specifications Screened
None
Specifications Seal Material
Loctite 609, 680
