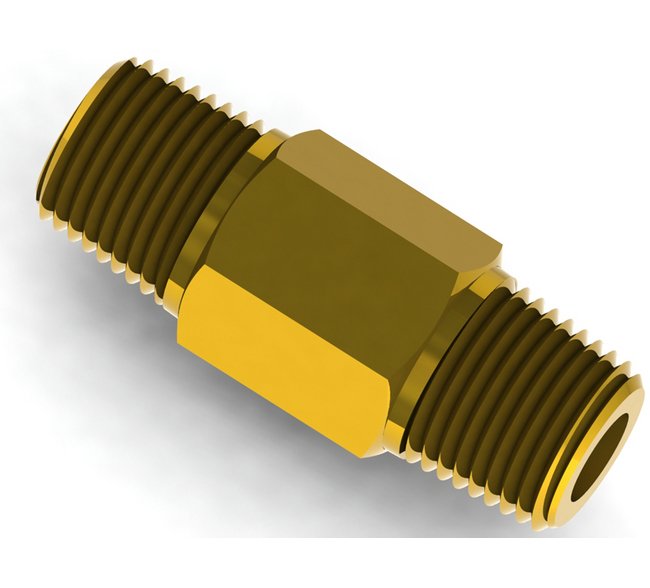

Precision Flow Control Valve - Brass Ball Type NPT Nipple

Name: Precision Flow Control Valve - Brass Ball Type NPT Nipple
Brand: O'Keefe Controls Co.
SKU: FLO-a3c773
Price: 34.99 USD
Availability: OutOfStock

SKU:FLO-a3c773

Achieve precise flow control with our high-quality Brass Ball Type NPT Nipple Valve. Ideal for industrial use.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

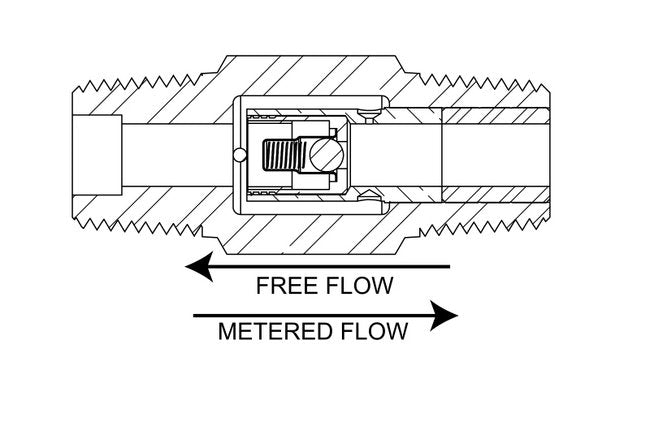

Experience precise flow control with our Precision Flow Control Valve. Crafted from high-quality brass and 304 SS materials, this valve offers a tight seal with Loctite 609 and 680. With a nominal orifice size of 42 and a maximum operating pressure of 2000 psig, it ensures reliable performance for both liquids and gases. The tamperproof orifice design, high-pressure capacity, and long-lasting construction make it ideal for industrial applications.

Product Specifications

Dimensions Orifice Diameter

0.042 in

Dimensions Total Length

1.91 in

Dimensions Width Across Flats Hex

11/16 in

Features Features

All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity

Flow Data Air Flow At 100 Psig

809 to 1650 ftÂ³/h

Flow Data Water Flow At 100 Psig

1.9 to 3.9 gpm

Specifications Additional Wetted Material

Loctite 609 / 680

Specifications Assembly Forward Cv

0.230

Specifications Ball Material

304 SS

Specifications Check Valve Cv

0.191

Specifications Connection A

1/4" NPT Male

Specifications Connection B

1/4" NPT Female

Specifications Cracking Pressure

0 psig

Specifications Cv Ratio Forward Cv Return Cv

5.90

Specifications Material

Brass

Specifications Maximum Operating Pressure Gauge

2000 psig

Specifications Nominal Orifice Size

Specifications Orifice Cv Return

0.039

Specifications Screened

None

Specifications Seal Material

Loctite 609, 680

Precision Flow Control Valve - Brass Ball Type NPT Nipple
