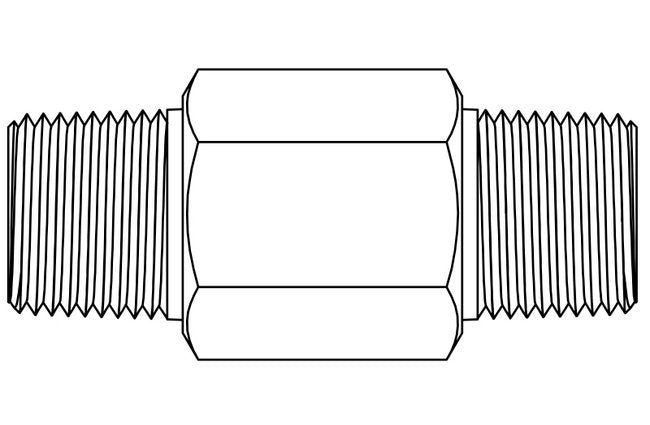

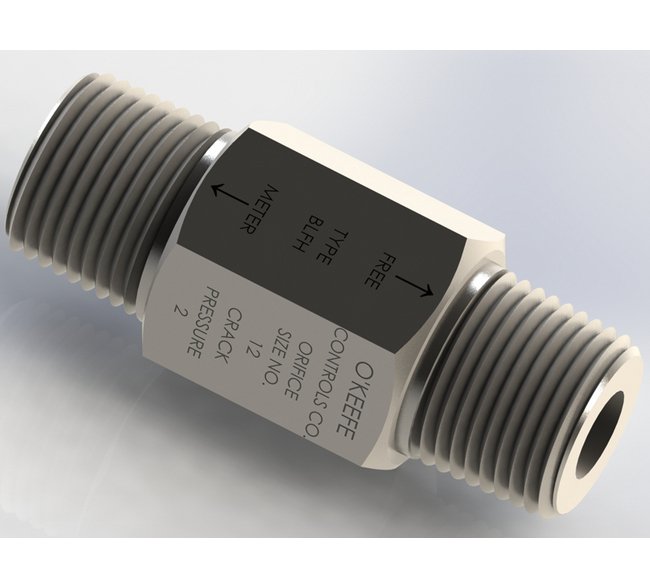

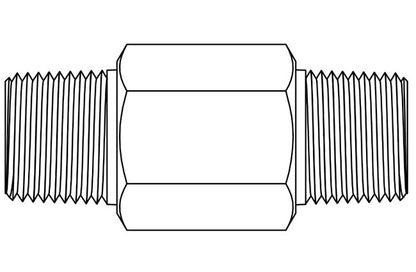

Precision Flow Controls - Ball Type NPT Nipple
Precision Flow Controls - Ball Type NPT Nipple
SKU:FLO-d1d8a8
Durable Precision Flow Controls for reliable fluid and gas regulation. Tamperproof orifice and high-pressure capacity.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Precision Flow Controls - Ball Type NPT Nipple
$39.99
Quantity: 1
Claim Your Seller Account
Precision Flow Controls - Ball Type NPT Nipple
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

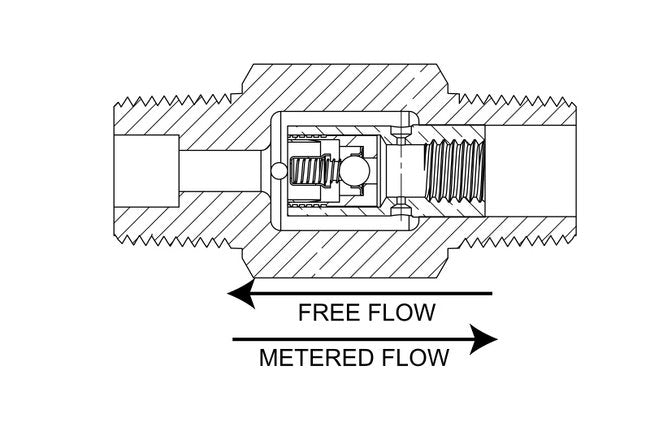

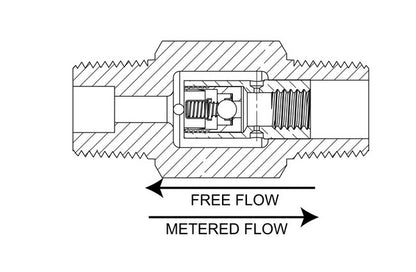

The Precision Flow Controls - Ball Type NPT Nipple features a parallel arrangement of a ball check valve and a precision orifice, ensuring free flow in one direction and metered flow in the other. Crafted from 303 SS with a 304 SS ball, this durable fixture offers a nominal orifice size of 0.023 inches and a cracking pressure of 2 psig. With a maximum operating pressure of 200 psig, it provides reliable performance for both liquids and gases. The tamperproof orifice and high-pressure capacity make it ideal for a range of applications.
Product Specifications
Dimensions Orifice Diameter
0.023 in
Dimensions Total Length
1.4 in
Dimensions Width Across Flats Hex
9/16 in
Features Features
All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity
Flow Data Air Flow At 100 Psig
346 to 662 ft³/h
Flow Data Water Flow At 100 Psig
0.8 to 1.6 gpm
Specifications Assembly Forward Cv
0.093
Specifications Ball Material
304 SS
Specifications Check Valve Cv
0.081
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/8" NPT Male
Specifications Cracking Pressure
2 psig
Specifications Cv Ratio Forward Cv Return Cv
7.75
Specifications Material
303 SS
Specifications Maximum Operating Pressure Gauge
200 psig
Specifications Nominal Orifice Size
23
Specifications Orifice Cv Return
0.012
Specifications Screened
None
