Precision Force Sensing Load Pins - RCP/SCP Series
Precision Force Sensing Load Pins - RCP/SCP Series
SKU:LOA-e3a032
High-precision load pins for direct force measurement, offering rugged construction and seamless integration
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Precision Force Sensing Load Pins - RCP/SCP Series
$299.99
Quantity: 1
Claim Your Seller Account
Precision Force Sensing Load Pins - RCP/SCP Series
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

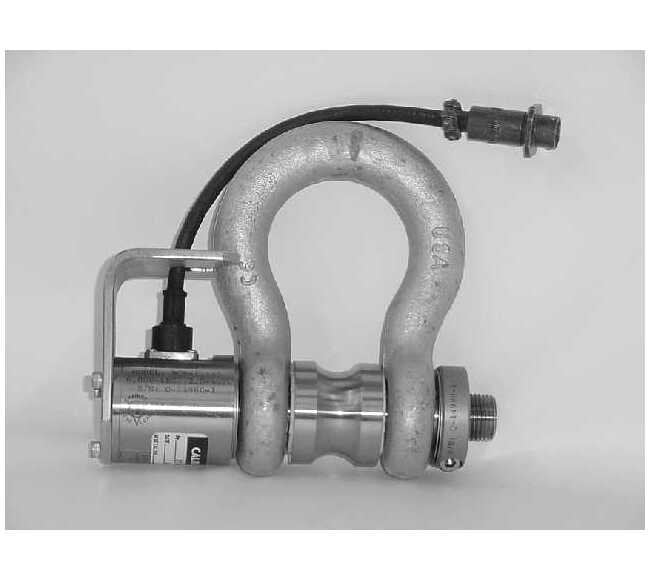

The RCP/SCP Series Force Sensing Shackle Load Pins are precision engineered to replace standard Crosby and Skookum shackle pins. Featuring rugged stainless steel construction, internally sealed strain gages, and high-strength design, these load pins offer direct force measurement with exceptional accuracy. With a load capacity up to 180,000 lbs and full bridge 350 Ohm technology, these pins ensure reliable performance in various applications. Designed for easy installation and precise force sensing, these pins provide enhanced load measurement capabilities for both consumer and institutional buyers.
Product Specifications

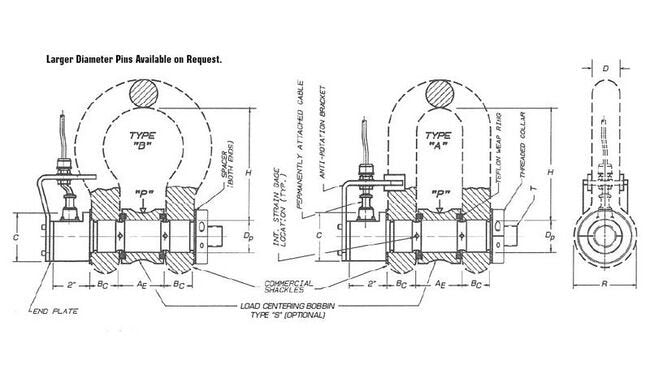

Dimensional Drawing Dimensional Drawing
RCP-SCP Force Sensing Shackle Bolt
Electrical Specifications Cable
#20(26x34) AWG., rubber insulation, shielded, rubber jacket, 4-Conductor (Standard Cable)
Electrical Specifications Excitation
Red
Electrical Specifications Function
Wire Code
Electrical Specifications Signal
Green
Features 0
Precison Load Sensing Rugged Internally Sealed Strain Gages Easy Installation Direct Force Measurement High Strength Stainless Steel
General Information 0
Shackle Load Pins are strain gage transducers developed by Strainsert (U.S. Patent No. 3,695,096). They are manufacured utilizing the internal strain gage process perfected by Strainsert since 1960. They offer precision force measurement by simply replacing existing shackle pins.The pin design is a double-shear arrangement. Typically, force P is applied at the center of the pin while 2 equal opposing forces of P/2 are applied at each end at the shackle ears. Strain gages are sealed inside a small axial hole and are positioned at the 2 shear locations at the interface between the shackle ears and the shackle eye. The strain gages are positioned and oriented with great precision along the neutral plane relative to the specific direction of force.An anti-rotation device is necessary for proper reading and alignment. If a force P is applied to the pin at an angle other than the specified direction, the theoretical bridge output will be offset by a component of the force along the sensitive direction, i.e. P cos X.The four strain gages (two at each shear location) are electrically connected to form a full bridge, the signal from each gage being additive so that the bridge output is proportional to the sum of the forces transmitted by the shear planes of the pin. The circuit typically includes temperature compensation, signal trim (optional), and zero balance resistors terminating in a suitable connector socket or integral cable, and potted with a sealing compound inside the gage hole for enhanced environmental protection.Standard models include detailed calibration data up to 500,000 lbs. Higher capacity calibration data is available at an additional charge. Strainsert factory calibrations are intended to simulate installed conditions, however, it is recommended that an in-place calibration be performed to account for any installation, tolerance, and/or alignment influences affecting sensor measurement.Standard models are typically used in new applications where the designer can develop the specific load pin joint around the standard load pin dimensions, to optimize force measurement performance. In addition, the standard load pin may fit or can be incorporated through the use of bushings or modification of the assembly.
Performance Specs Bridge
Full bridge 350 Ohm (Nominal)
Performance Specs Excitation
12 V AC (Maximum) | 12 V DC (Maximum)
Performance Specs Hysteresis
±0.50% FS (Nominal)
Performance Specs Non Linearity
±0.50% FS (Nominal)
Performance Specs Non Repeatability
±0.15% FS (Nominal)
Performance Specs Output Signal
2-mV/V (Nominal) | 2-mV/V (Standardized Output)
Performance Specs Overload Without Failure
300% (Minimum)
Performance Specs Overload Without Zero Shift
150%
Performance Specs Service Temp Range
to 150 °F
Performance Specs Temp Effects On Output
0.008% load / °F (Nominal)
Performance Specs Temp Effects On Zero
0.005% FS / °F (Nominal)
Performance Specs Zero Balance
±2% FS (Nominal)
Specifications Ae Shackle Opening
5.75 in
Specifications Ae Tolerance
0.25 in
Specifications Bc Width Of Shackle Eard Nominal
3.75 in
Specifications Connector Type
Permanently Attached Cable
Specifications C Clevis Bolt Head Diameter
4.375 in
Specifications Dp Nominal Shackle Bolt Diameter
3.750 in
Specifications H Inside Length Of Anchor Shackle
15.00 in
Specifications Load Capacity
180000 lb
Specifications Material
Stainless Steel 17-4, H-1025 (Standard)
Specifications R Outside Diameter Of Shackle Ear Nominal
8.00 in
Specifications Shackle Size
3-1/2 Inch
Specifications Shackle Type
Anchor Shackle
Specifications T Thread Size
3-12 UN
