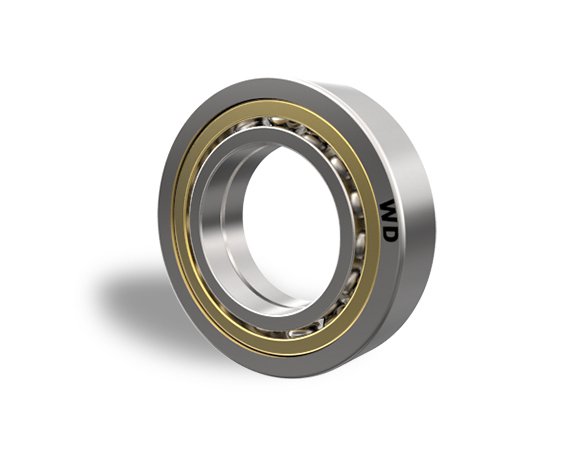

Precision Four Point Contact Ball Bearings - 65mm Bore Diameter
Precision Four Point Contact Ball Bearings - 65mm Bore Diameter
SKU:ANG-1adce8
High-performance 65mm Four Point Contact Ball Bearings for precision applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Precision Four Point Contact Ball Bearings - 65mm Bore Diameter
$129.99
Quantity: 1
Claim Your Seller Account
Precision Four Point Contact Ball Bearings - 65mm Bore Diameter
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Precision Four Point Contact Ball Bearings are designed for high-performance applications, with a bore diameter of 65mm and load ratings of 95.1 kN dynamic and 90.1 kN static. These bearings offer efficient rotational capabilities, smooth operation at speeds up to 5900 rpm, and optimal shoulder dimensions for secure fits. Compliant with Federal/DoD procurement standards, GSA requirements, and FAR compliance factors, these bearings meet the stringent quality and durability criteria of institutional buyers.

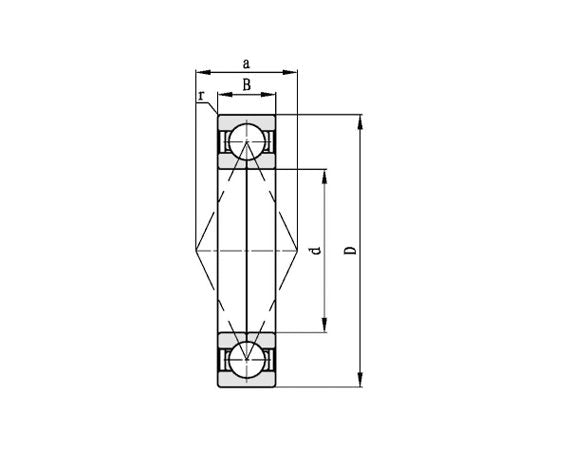

Product Specifications
Boundary Dimensions Bore Diameter
65 mm
Boundary Dimensions Minimum Dimension R
1.5 mm
Boundary Dimensions Outside Diameter
120 mm
Boundary Dimensions Overall Bearing Width
23 mm
Limiting Speed Grease Limiting Speed
4300 rpm
Limiting Speed Oil Limiting Speed
5900 rpm
Load Rating Dynamic Cr Load Rating
95.1 kN
Load Rating Static Cor Load Rating
90.1 kN
Shoulder Dimensions Maximum Shoulder Dimension Da
111.5 mm
Shoulder Dimensions Maximum Shoulder Dimension Ra
1.5 mm
Shoulder Dimensions Minimum Shoulder Dimension Da
73.5 mm
Specifications Approximate Mass
1.23 kg
Specifications Distance Of Working Points A
64.8 mm
