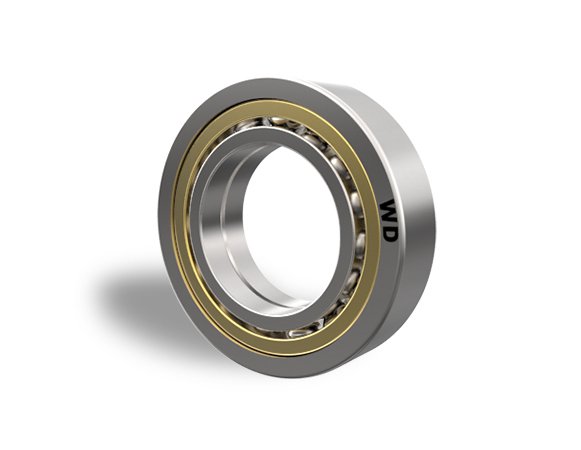

Precision Four Point Contact Ball Bearings 65mm x 140mm x 33mm
Precision Four Point Contact Ball Bearings 65mm x 140mm x 33mm
SKU:ANG-1f384f
High-performance Precision Four Point Contact Ball Bearings for durability & efficiency in critical operations.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Precision Four Point Contact Ball Bearings 65mm x 140mm x 33mm
$99.99
Quantity: 1
Claim Your Seller Account
Precision Four Point Contact Ball Bearings 65mm x 140mm x 33mm
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Precision Four Point Contact Ball Bearings are designed for high-performance applications, featuring a Bore Diameter of 65mm, Outside Diameter of 140mm, and a sturdy Overall Bearing Width of 33mm. With a Dynamic Load Rating of 164 kN and a Grease Limiting Speed of 3800 rpm, these bearings ensure reliable operation under heavy loads and high speeds. Compliant with Federal procurement standards and suitable for various industrial sectors, these bearings guarantee durability and efficiency in critical operations.
Product Specifications

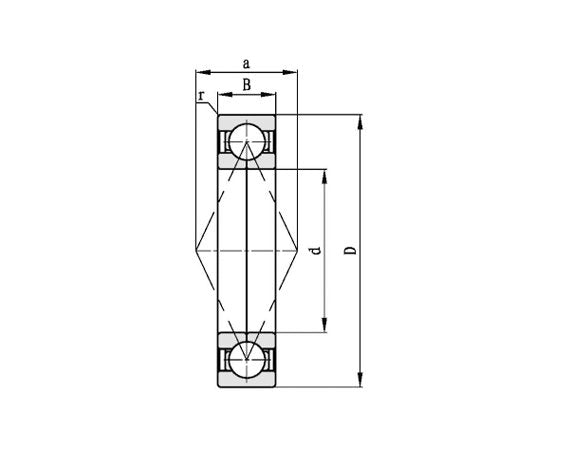

Boundary Dimensions Bore Diameter
65 mm
Boundary Dimensions Minimum Dimension R
2.1 mm
Boundary Dimensions Outside Diameter
140 mm
Boundary Dimensions Overall Bearing Width
33 mm
Limiting Speed Grease Limiting Speed
3800 rpm
Limiting Speed Oil Limiting Speed
5300 rpm
Load Rating Dynamic Cr Load Rating
164 kN
Load Rating Static Cor Load Rating
145 kN
Shoulder Dimensions Maximum Shoulder Dimension Da
128 mm
Shoulder Dimensions Maximum Shoulder Dimension Ra
2 mm
Shoulder Dimensions Minimum Shoulder Dimension Da
77 mm
Specifications Approximate Mass
2.36 kg
Specifications Distance Of Working Points A
72.1 mm
