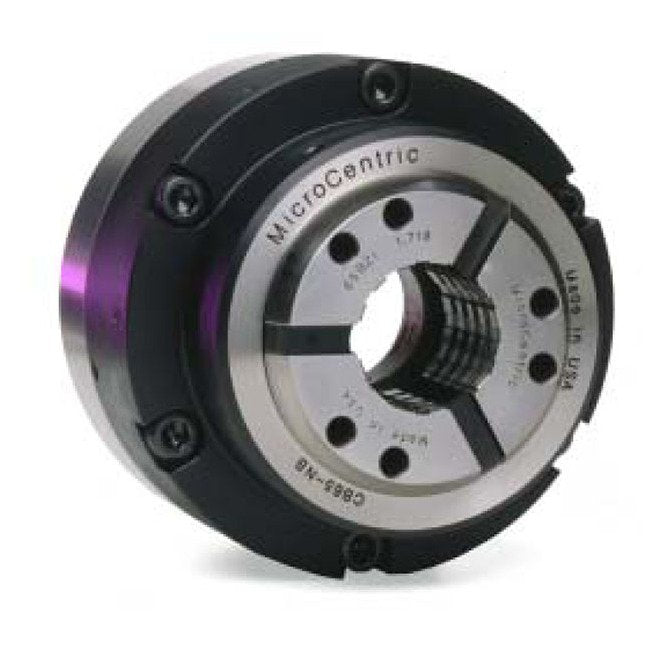

Precision Grip CB-NB Collet Chucks
Precision Grip CB-NB Collet Chucks
SKU:QUI-275365
Enhance machining precision with our CB-NB Collet Chucks - Pull Back Design for maximum efficiency, accuracy, and rigidity.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Precision Grip CB-NB Collet Chucks
$399.99
Quantity: 1
Claim Your Seller Account
Precision Grip CB-NB Collet Chucks
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your machining precision with our CB-NB Collet Chucks featuring a Pull Back design that optimizes clamping efficiency and rigidity. With a low profile and radial adjusting screws for precision, these chucks ensure maximum tool clearance, accuracy, and durability. Engineered for life-long lubrication, hardened components provide top-tier accuracy meeting stringent institutional procurement requirements.
Product Specifications
Specifications Accuracy
.0004 in | 0.010 mm

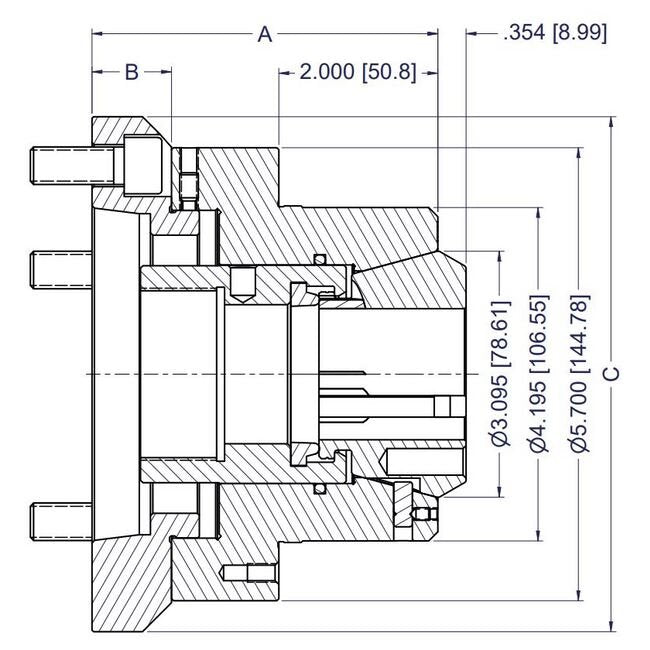

Specifications A Dimension
4.05 in | 102.9 mm
Specifications B Dimension
0.703 in | 17.86 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
SK42BZI
Specifications C Dimension
5.95 in | 151.13 mm
Specifications Item No
15 042 172
Specifications Linear Chuck Stroke
0.16 in | 4 mm
Specifications Max Clamping Diameter
1.625 in | 42 mm
Specifications Max Clamp Force
17,985 lbs | 80 kN
Specifications Max Draw Tube Thread
M60x2
Specifications Max Speed
6,000 rpm
Specifications Min Clamping Diameter
0.156 in | 4 mm
Specifications Spindle Nose
140mm
Specifications Weight
16.7 lb | 7.6 kg
Standard Equipment 0
CB-NB collet chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
