Precision Grooving Vee Bottom Tool, 0.272 / 0.278 in Thickness

Name: Precision Grooving Vee Bottom Tool, 0.272 / 0.278 in Thickness
Brand: Ultra-Met
SKU: GRO-316388
Price: 49.99 USD
Availability: OutOfStock

SKU:GRO-316388

Enhance precision with our Vee Bottom tool, 0.272 / 0.278 in thickness. Custom grade available.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Precision Grooving Vee Bottom tool is designed for exceptional accuracy with a thickness range of 0.272 to 0.278 inches. Featuring a precise Radius of 3/16 inch, an optimal Angle of 100 degrees, and a Width ranging from 0.372 to 0.378 inches, this tool ensures reliable performance. With a Flat dimension of 0.060 to 0.070 inches, it offers versatility for various grooving applications. Grade Availability can be customized based on specific requirements, making it an ideal choice for institutional and government buyers seeking precision and quality.

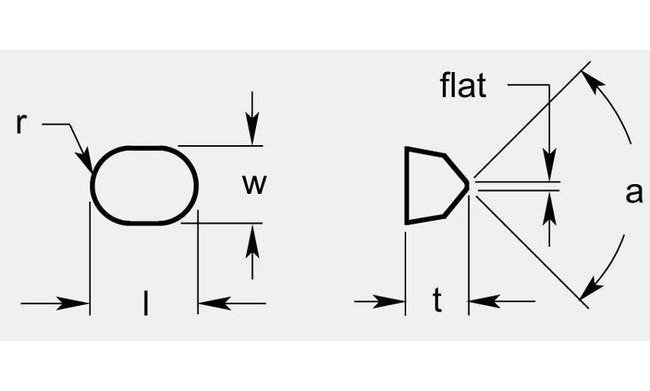

Product Specifications

Dimensional Specification A

100 Âº

Dimensional Specification Angle A

100 Âº

Dimensional Specification Flat

0.060 / 0.070 in

Dimensional Specification L

0.494 / 0.506 in

Dimensional Specification Radius R

3/16 in

Dimensional Specification Thickness T

0.272 / 0.278 in

Dimensional Specification Width W

0.372 / 0.378 in

Grade Availability Grade Availability

Available on Request
