Precision Ground Carbide Rod UM6 Grade 8mm Three Hole 30 Degree

Name: Precision Ground Carbide Rod UM6 Grade 8mm Three Hole 30 Degree
Brand: Ultra-Met
SKU: SOL-6426cd
Price: 49.99 USD
Availability: OutOfStock

SKU:SOL-6426cd

High-precision 8mm carbide rod with UM6 grade, polished finish, and three-hole 30-degree design for industrial precision.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

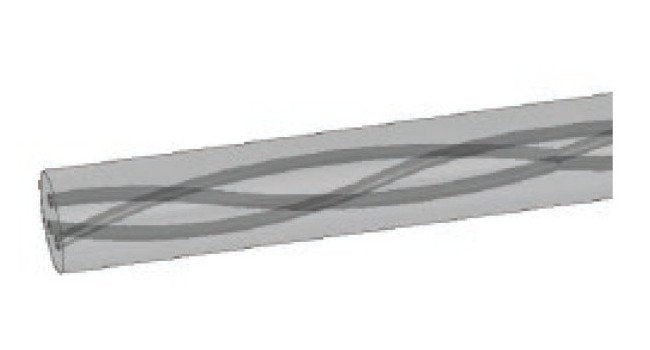

The Precision Ground Carbide Rod UM6 Grade features a diameter of 8mm and a three-hole design with a 30-degree angle for enhanced precision. Made from high-quality carbide material, this rod is polished for a smooth finish. With a length of 330mm and tight tolerances, it ensures consistent performance. The UM6 carbide grade meets rigorous industry standards for durability and reliability. Ideal for industrial applications requiring exacting specifications, this carbide rod is designed to deliver superior performance.

Product Specifications

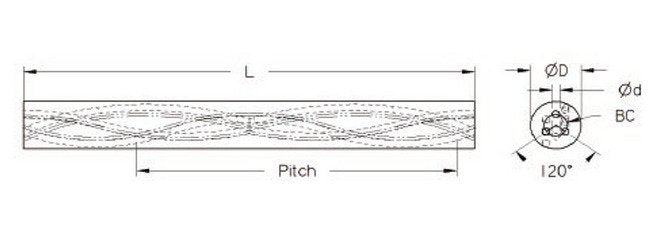

Classifications Between Centers Bc Diameter

3.85 mm

Classifications Between Centers Bc Diameter Tolerance

Â±0.20 mm

Classifications Brands

Ultra-MetÂ®

Classifications Carbide Grade

UM6

Classifications Diameter

8 mm

Classifications Finish

Polished

Classifications Hole D

0.70 mm

Classifications Hole D Tolerance

0.15 mm

Classifications International Organization For Standardization I

Classifications Length

330 mm

Classifications Length Tolerance

+5 mm | 0 mm

Classifications Material

Carbide

Classifications Note

All inventory subject to prior sales.

Classifications Pitch

43.53 mm

Classifications Shipping Weight

0.307942155 Kilogram

Precision Ground Carbide Rod UM6 Grade 8mm Three Hole 30 Degree
