Precision Hex Bore Couplings

Precision Hex Bore Couplings

SKU:ROU-24e697

Ensure precise shaft alignment and easy adjustment with our Precision Hex Bore Couplings. Available in steel, stainless steel, and aluminum variants.

Regular price $97.72
Regular price Sale price $97.72
Sale

Initiate Order

Precision Hex Bore Couplings

Precision Hex Bore Couplings

$97.72

Quantity: 1

Claim Your Seller Account

Precision Hex Bore Couplings

Precision Hex Bore Couplings

$97.72

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

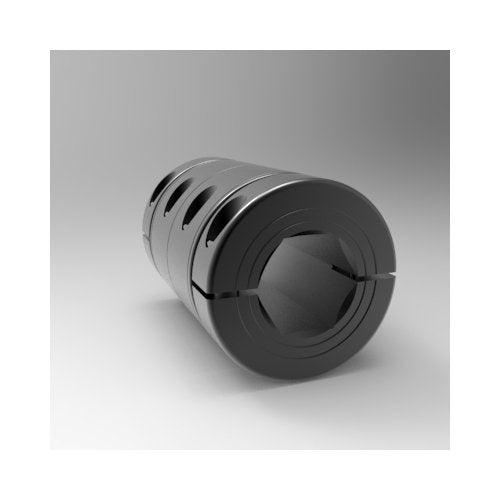

The Precision Hex Bore Couplings are meticulously crafted for assured shaft alignment and minimal axial runout, making them ideal for hexagonal shaft applications. Featuring a balanced design with opposing screw heads, these couplings offer the convenience of disassembly for easy adjustment. With a smooth bore that protects shafts from damage and Stafford's exclusive Precision Sleeve design, these couplings provide a high clamping power without marring the shaft surface. Available in Steel, Stainless Steel, and Aluminum variants, these two-piece couplings are precision machined and RoHS2 and REACH compliant.

Product Specifications

Dimensional Attributes Bore Size A
3/4 in
Dimensional Attributes Bore Size B
3/4 in
Dimensional Attributes Outside Diameter
1.875 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Size
1/4-28 x 3/4
Dimensional Attributes Total Length
2.875 in
Specifications Alloy
1215
Specifications Approximate Weight
1.58 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications List Price
97.72 USD
Specifications Material
Steel
Specifications Part Number
13L012012PSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Screw Material
Alloy Steel
Specifications Series
Signature
Specifications Type
Precision Sleeve
Specifications Upc Code
662786039560
